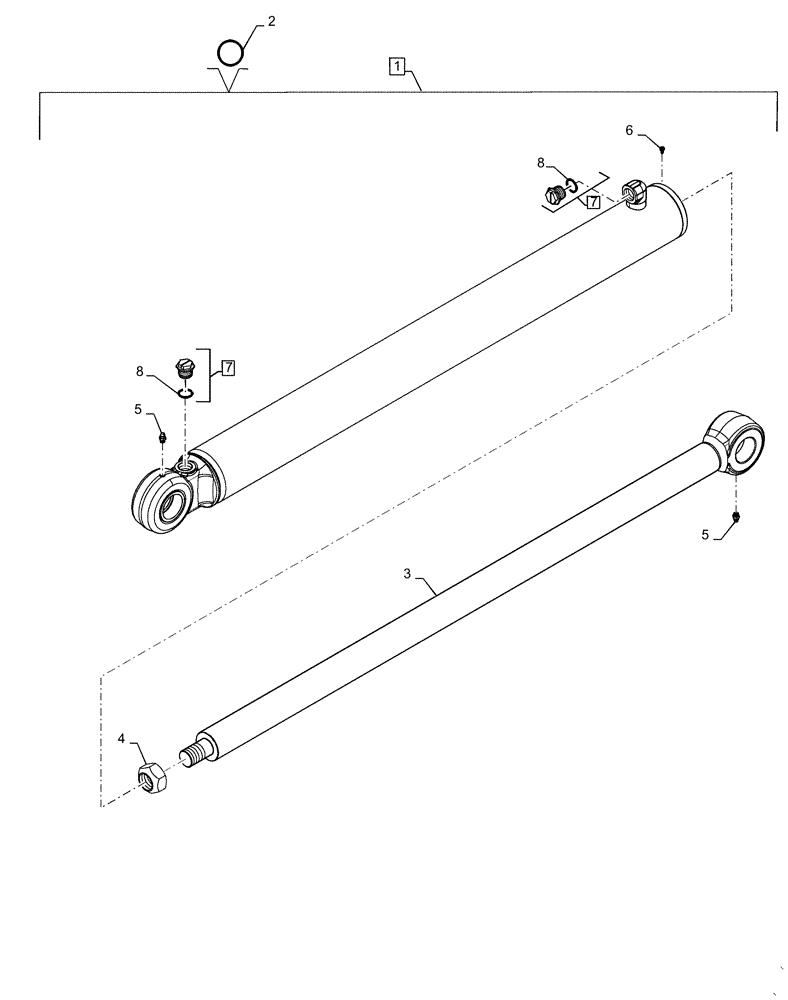

Запчасти Case TR310 (35.701.CB) - LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

1

47364858

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 817.9mm Stroke

Lift, Incl 3 - 8

1шт.

2

47364907

SERVICE KIT

Services 1

1шт.

3

84575708

ROD

44.5mm OD

1шт.

4

514101

LOCK NUT,Hex, 1" - 14

Nylon Type

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

Incl 8

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 7

2шт.
