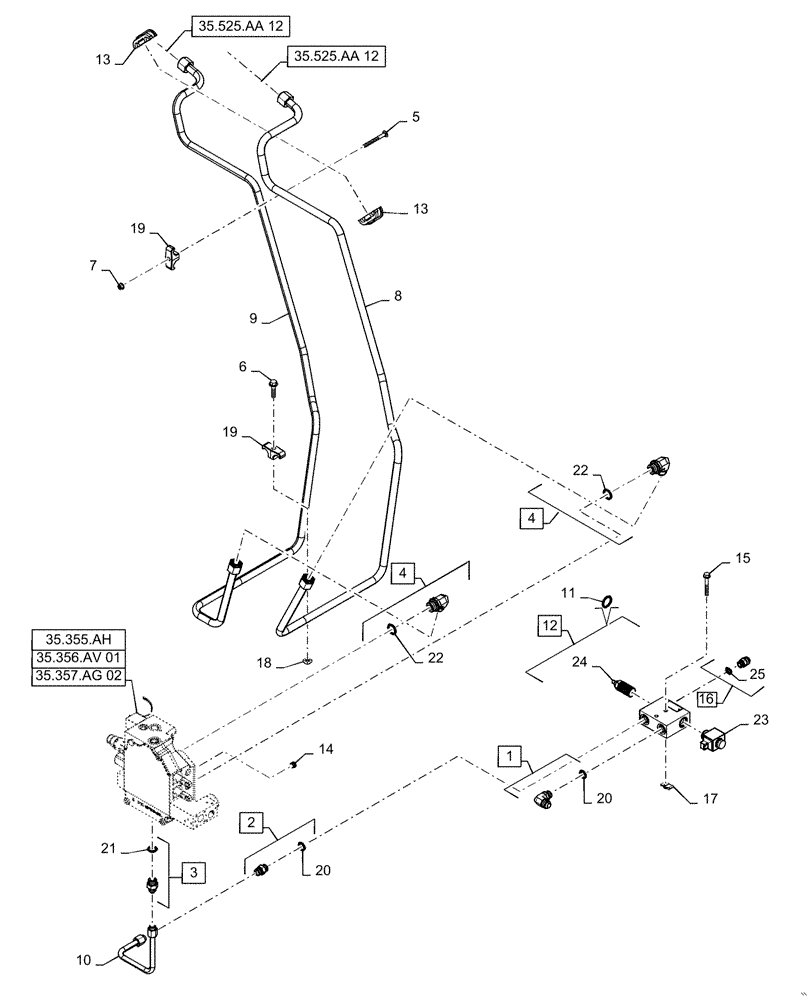

Запчасти Case TR310 (35.525.AA[11]) - AUXILIARY HYDRAULIC, HIGH FLOW, CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 20

1шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 20

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 21

1шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 22

2шт.

5

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

6

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

8

84186142

TUBE

19.05mm OD x 2381.8mm L, Loader Valve to Lift Arm

1шт.

9

84186144

TUBE

19.05mm OD x 2309.3mm L, Loader Valve to Lift Arm

1шт.

10

84186146

TUBE,12.7mm OD

High Flow Valve to Loader Valve

1шт.

11

84304585

SEAL KIT

High Flow Combiner, Services 12

1шт.

12

84256405

HYDRAULIC VALVE

High Flow Combiner, Incl 23 - 24

1шт.

13

84362112

SUPPORT

Hydraulic Tube

2шт.

14

84373460

PLUG,23.8mm OD

23.8mm OD, Load Check

1шт.

15

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

16

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 25

1шт.

17

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

18

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

19

D124301

CLAMP,3/4" ID

2шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

84390144

COIL

High Flow Combiner

1шт.

24

84304583

POPPET

Valve, High Flow Combiner

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
