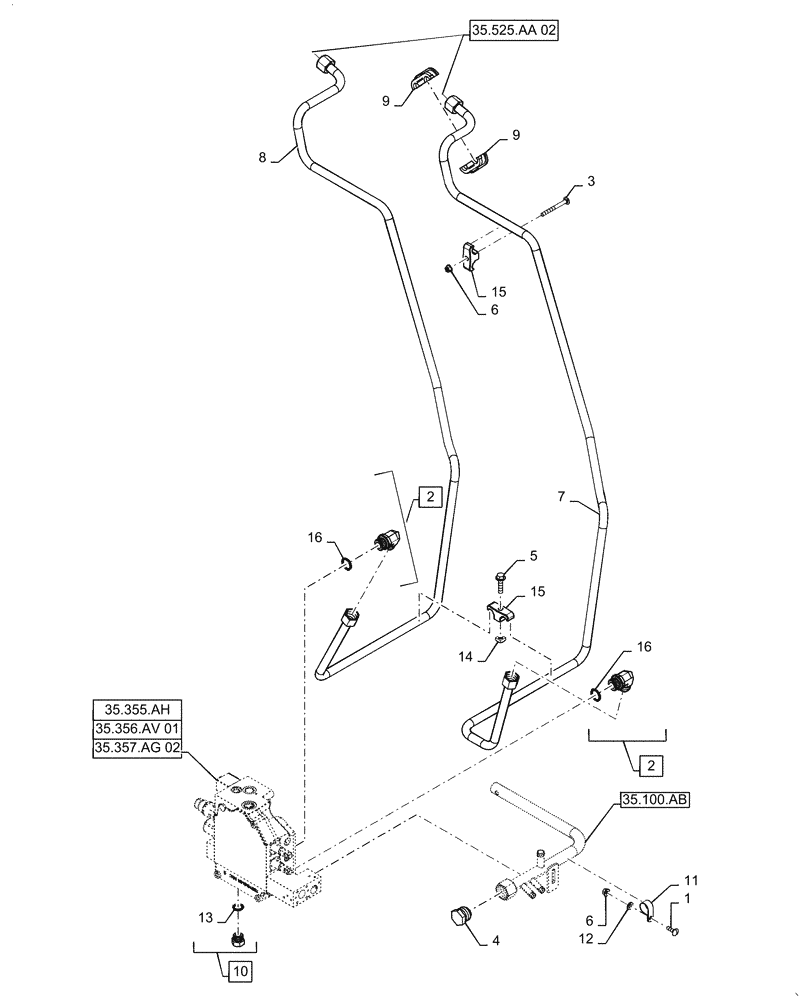

Запчасти Case TR310 (35.525.AA[01]) - AUXILIARY HYDRAULIC, STANDARD , CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS

1

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 16

2шт.

3

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

4

9790527

PLUG,1-5/16" - 12 JIC

1шт.

5

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

7

84186142

TUBE

19.05mm OD, Aux, Loader Valve to Lift Arm

1шт.

8

84186144

TUBE

19.05mm OD, Aux, Loader Valve to Lift Arm

1шт.

9

84362112

SUPPORT

Hydraulic Tube

2шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl 13

1шт.

11

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

15

D124301

CLAMP,3/4" ID

Tube

2шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
