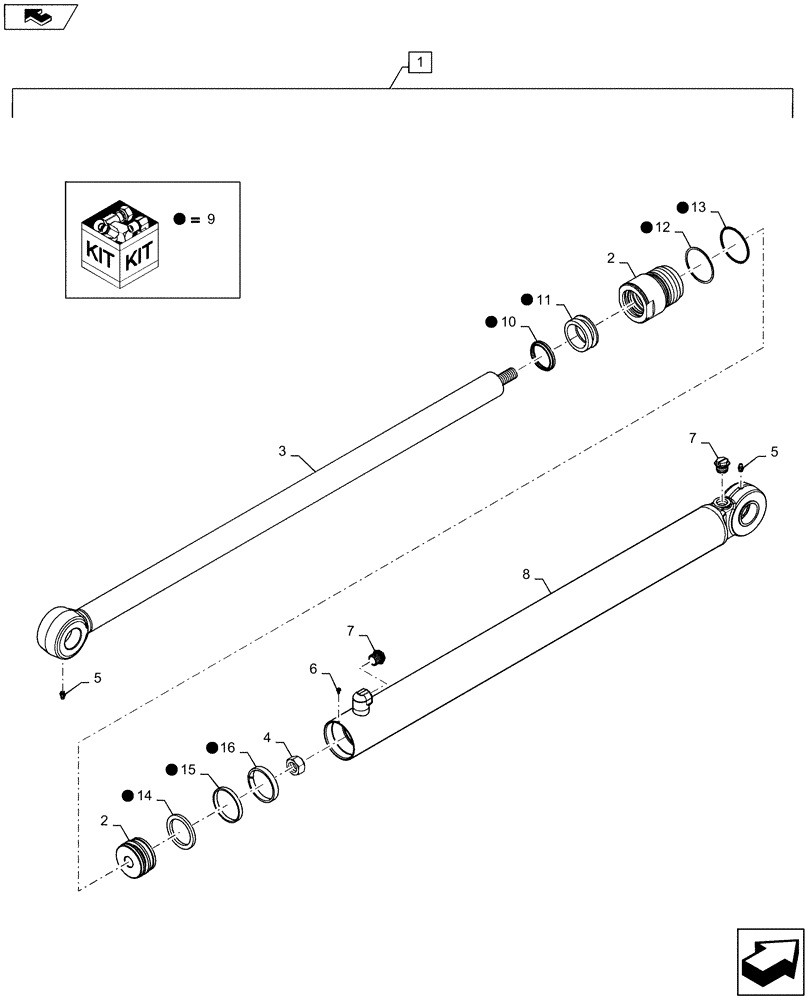

Запчасти Case TR270 (35.701.CB) - BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

47364862

HYDRAULIC CYLINDER,44.4mm Rod, 805mm Stroke

Lift Cylinder, Incl 2 - 16

1шт.

1

47364862R

REMAN-HYD CYLINDER

1шт.

1

47364862C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Piston, Incl In 1

1шт.

3

47364899

ROD,44.43mm OD x 1105.75mm L

Piston, 44.4mm OD

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4" - 16, Hex Head

2шт.

8

NSS

NOT SOLD SEPARAT

Tube, Incl In 1

1шт.

9

47364908

SERVICE KIT

Seal Kit, Incl 10 - 16

1шт.

Instruction Sheet P/N 87427854

1шт.

10

47364887

ROD WIPER

1шт.

11

1542875C1

SEAL KIT,44.4mm Rod

Rod And Buffer

1шт.

12

86512008

SEAL,60.89mm ID x 66.88mm OD x 1.27mm Thk

Back-up

1шт.

13

52419

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

14

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

Loader, 63.5mm DIA

1шт.

15

G100712

SEAL

Piston, 63.5mm DIA

1шт.

16

G100714

RING

Wear Ring, 63.5mm DIA

1шт.
