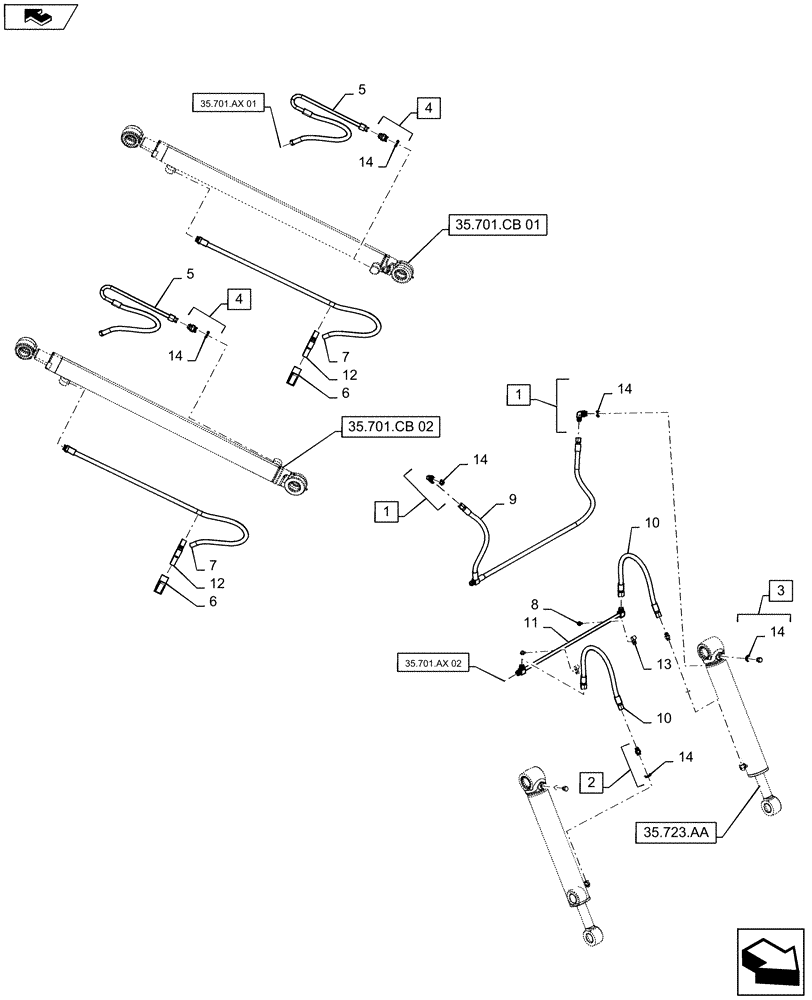

Запчасти Case TR270 (35.701.AX[03]) - BOOM HYDR LINES (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 14

2шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 14

2шт.

3

214389

PLUG,3/4" - 16 ORB

Incl 14

2шт.

4

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

5

84255975

TUBE

Lift Cylinder, Base

2шт.

6

84255986

HOSE CLAMP

Cylinder Saddle

2шт.

7

84281674

HYDRAULIC HOSE,9.53mm ID x 1130mm L, SAE 100R17

Lift Cylinder, Rod

2шт.

8

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

9

84346682

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

Tip Cylinder, Base

1шт.

10

84346755

HOSE ASSY.,9.53mm ID x 568mm L, SAE 100R16

Tip Cylinder, Rod

2шт.

11

84346785

HYD TUBE

Tip Cylinder, Crossover

1шт.

12

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

Double Tube

2шт.

13

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

Crossover, Bucket Cylinder

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8шт.
