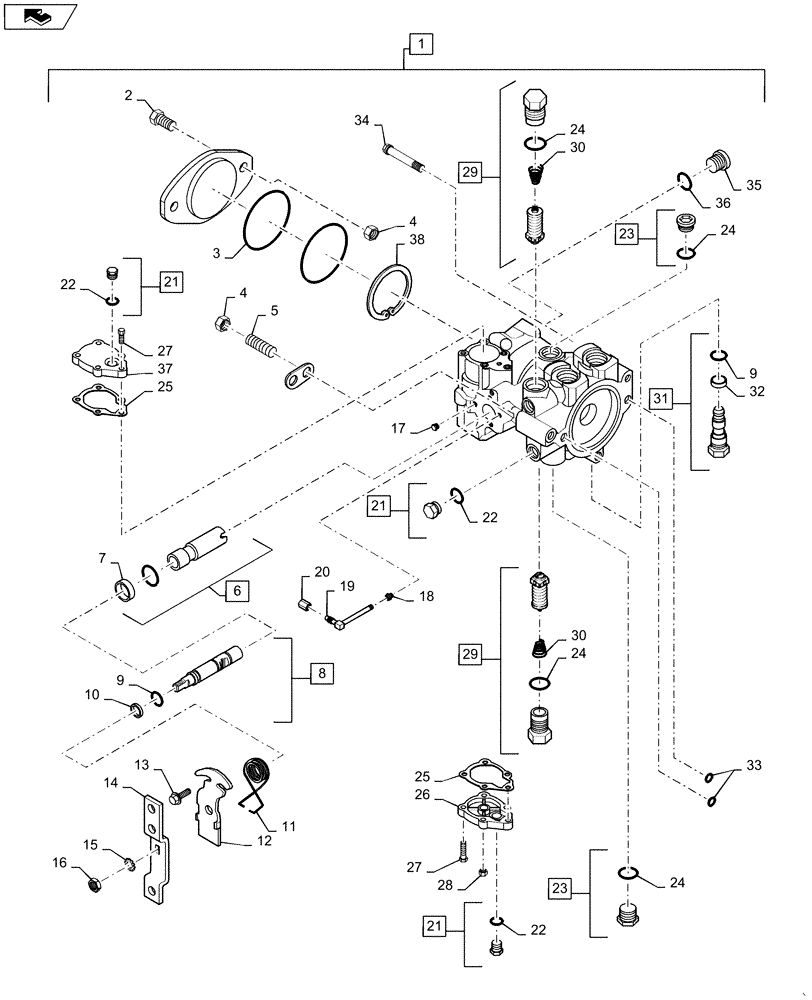

Запчасти Case TR270 (29.218.AC[02]) - TANDEM HYDROSTATIC PUMP, 46CC, MECHANICAL CONTROL, REAR (29) - HYDROSTATIC DRIVE

1

84322471

HYDROSTATIC PUMP,46 CC

Tandem, 46CC, Mechanical Control, Incl 2 - 38 And All Parts Listed On 29.218.AC(01)

1шт.

1

84322471R

REMAN-HYD PUMP

1шт.

1

84322471C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

3

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

3шт.

5

K608432

STUD,1/2" - 13 x 4-1/2"

4.5" OAL

1шт.

6

87039615

SLEEVE

Assembly, Incl 7

1шт.

7

86993483

BACK-UP RING,0.643"

1шт.

8

87042542

SPOOL

Incl 9 - 10

1шт.

9

86993475

O-RING

2шт.

10

86993484

BACK-UP RING,0.390"

1шт.

11

N13248

SPRING,3/4" OD

Neutral Return

1шт.

12

N13250

BRACKET

Neutral Return

1шт.

13

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

2шт.

14

100713A1

LEVER

Control Handle

1шт.

15

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

16

H436054

SPECIAL NUT,Lock, 5/16" - 18

1шт.

17

F23137

PLUG

Pipe

1шт.

18

86993479

PIPE PLUG,1/16" - 27

1шт.

19

218-506

90 ELBOW,7/16" - Male JIC x 1.8" - 27 Male NPTF

1шт.

20

86993467

CAP

Tube

1шт.

21

218-5155

PLUG,9/16" - 18 ORB

Incl 22

4шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

23

218-5212

PLUG,1-1/16" - 12 ORB

Incl 24

2шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

25

N14063

GASKET

Servo Cover

2шт.

26

H436065

COVER

Servo

1шт.

27

87269453

SCREW

Wheel Motor

10шт.

28

N13260

NUT,Inverted Lock

1шт.

29

105720A1

VALVE

Relief, 360 Bar, Incl 24, 30

2шт.

30

86993468

SPRING

Relief Valve

2шт.

31

87039612

BY-PASS VALVE

Assembly, Incl 9, 32

1шт.

32

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

1шт.

33

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

34

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

1шт.

35

218-5153

PLUG,7/16" - 20 ORB

Incl 36

1шт.

36

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

H436053

COVER

Servo

1шт.

38

F61018

SNAP RING,M73, Int

1шт.
