(90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL

Запчасти Case TR270 (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

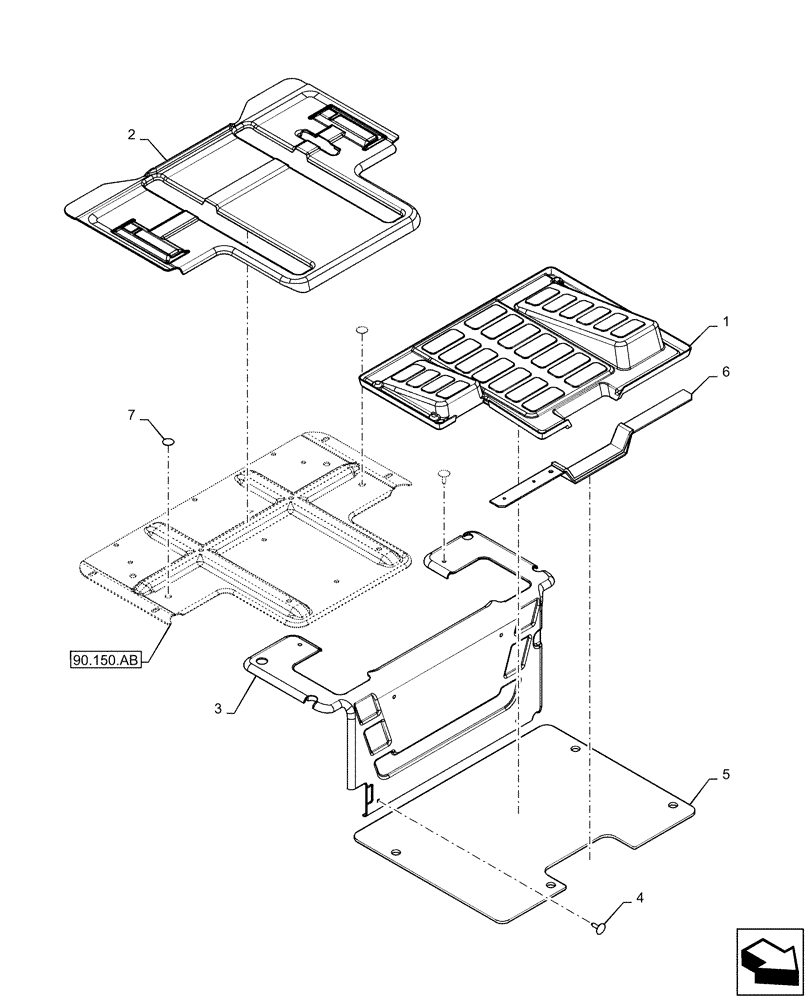

Схема запчастей Case TR270 - (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ab
7
5
2
1
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47478020

TRIM

Floor Mat

1шт.

2

84259693

FLOOR MAT

Seat Pan

1шт.

3

84397559

MAT

Heel Plate

1шт.

4

86620930

FASTENER,Push-In, 1.10" L, Nylon

6шт.

5

47504907

FOAM

623.9mm L, No Pedal Floor Plate

1шт.

6

84372707

FOAM

265mm L, Front Floor Plate

1шт.

7

414635A1

COVER,25.4mm OD x 0.51mm Thk

4шт.
