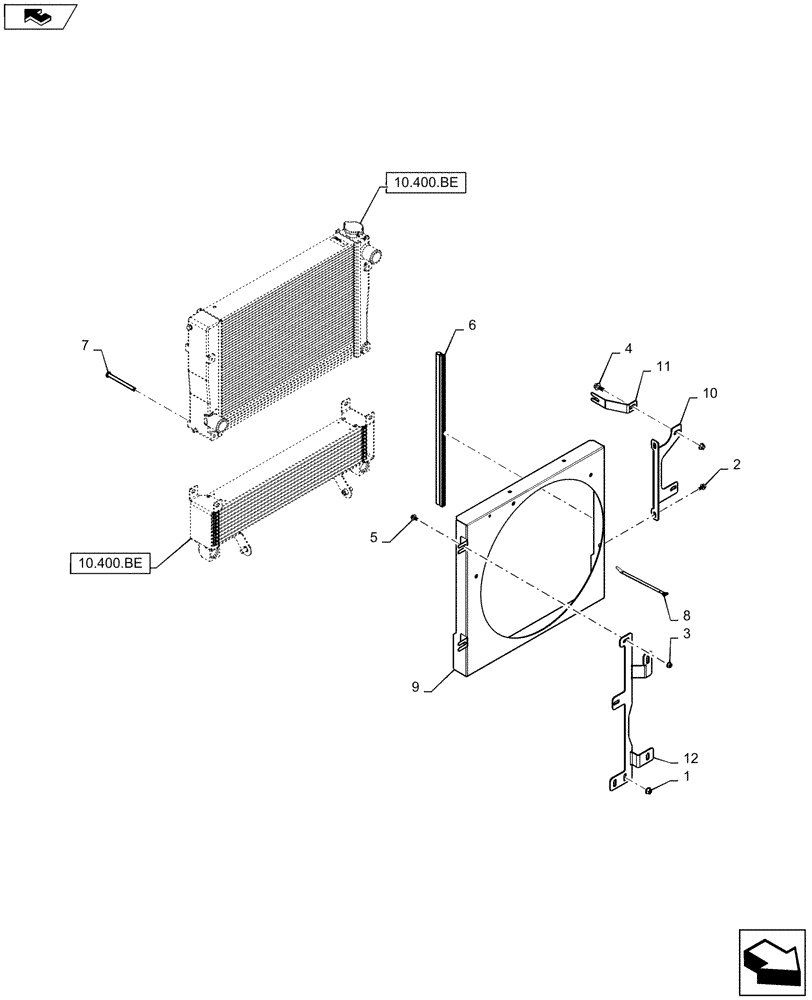

Запчасти Case TR270 (10.400.BF) - FAN SHROUD (10) - ENGINE

1

43435

FLANGE NUT,Hex, M10 x 1.5

6шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

3

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

4

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

5

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

5шт.

6

84277010

RUBBER SEAL,576.1mm L

576.1mm

4шт.

7

47375204

PIN,9.65mm OD x 120.45mm L

Radiator

2шт.

8

84259663

CABLE TIE,228.6mm L, Nylon, Black

Includes Retainer

2шт.

9

47473939

SHROUD

Fan

1шт.

10

47468551

BRACKET

LH, Fan Shroud

1шт.

11

47389934

BRACKET

Radiator Mount

1шт.

12

47681404

BRACKET

RH, Fan Shroud

1шт.
