Запчасти Case TR270 (90.150.AO) - CAB FASTENERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

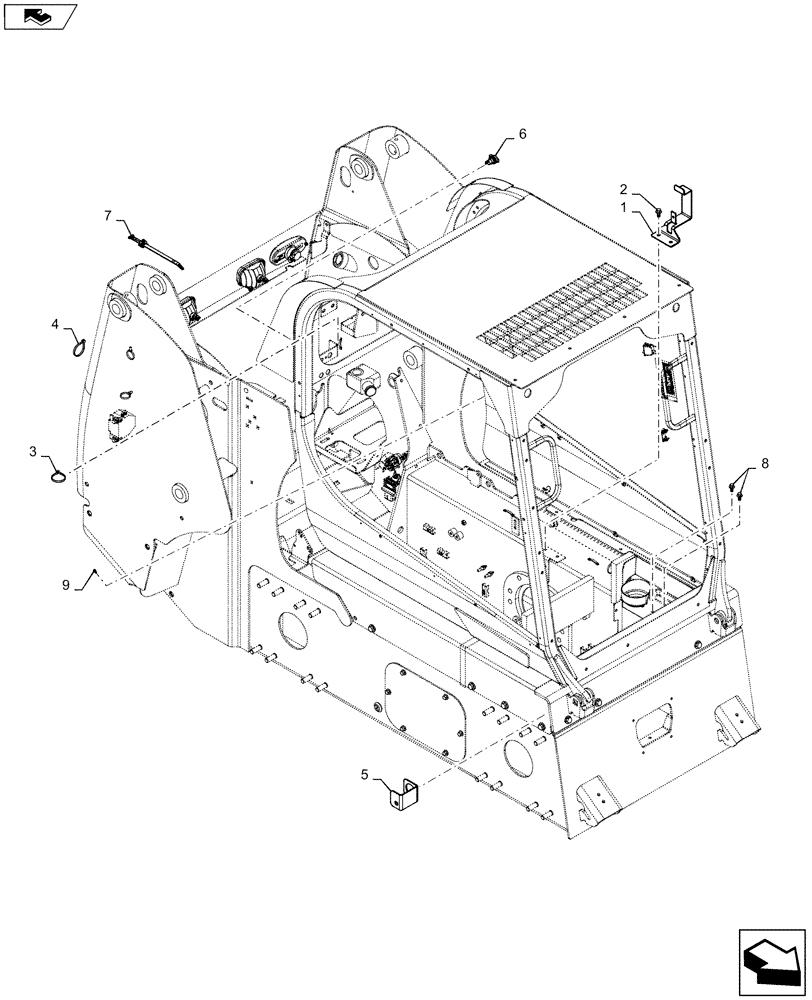

Схема запчастей Case TR270 - (90.150.AO) - CAB FASTENERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
6
8
3
2
9
7
5
4
1

Артикул

Название

Примечание

Количество

1

84296194

BRACKET, SUPPORTING

FCI Connector Support

1шт.

2

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

2шт.

3

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assy

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

5

84564792

BRACKET

C-Bracket

1шт.

6

82002966

POWER SOCKET,M18 x 1

Aux Power

1шт.

7

84259663

CABLE TIE,228.6mm L, Nylon, Black

228mm

4шт.

8

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

9

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

Выбрано товаров: 9
