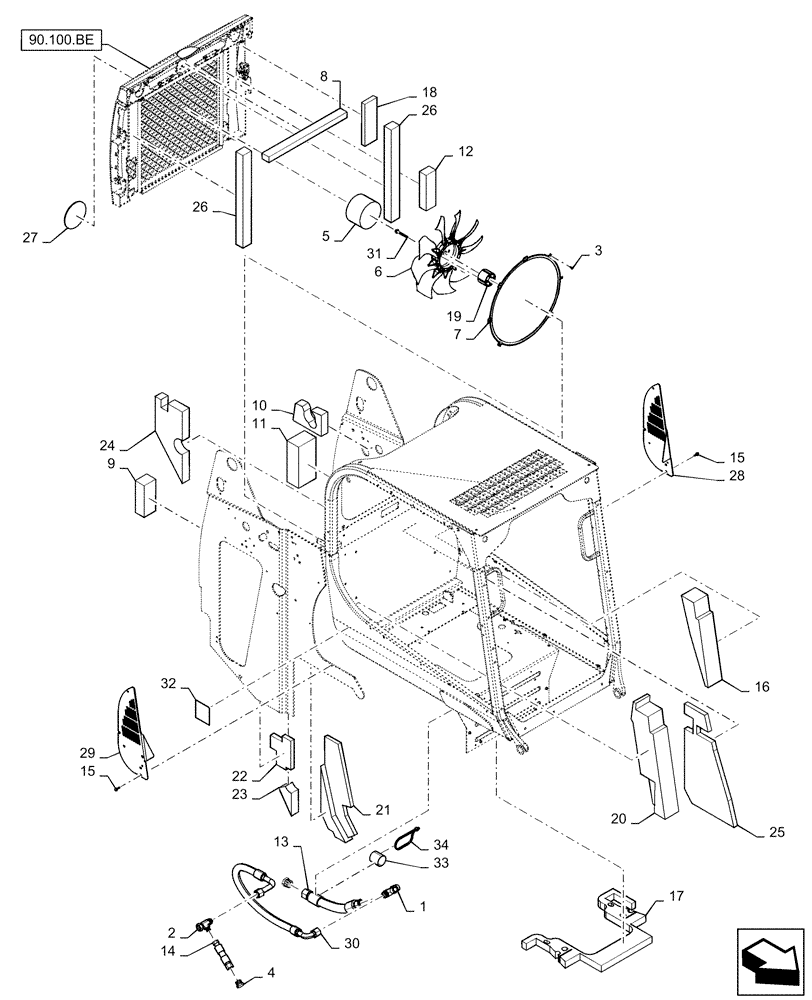

Запчасти Case TR270 (90.105.CU[01]) - INSULATION, SOUNDPROOFING, CAB EURO (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
2
265978
TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC
1шт.
3
87308841
RIVET,Pop, 3.97mm OD x 10.79mm L
8шт.
4
9790527
PLUG,1-5/16" - 12 JIC
2шт.
5
47391841
FOAM INSULATION
152.4mm OD, Rear Door
1шт.
6
47430287
FAN,9 Blades, 518mm OD
Clockwise, Pusher
1шт.
7
47612505
BRUSH
567.5mm OD, Circular
1шт.
8
47612514
FOAM INSULATION,35mm x 50mm x 570mm
Rear Door, Top
1шт.
9
47612517
FOAM INSULATION,65mm x 85mm x 200mm
Fuel Tank
1шт.
10
47612519
FOAM INSULATION
220mm L, LH, Hyd Fill
1шт.
11
47612521
FOAM INSULATION,260mm L x 127mm W x 85mm Thk
LH, Tower
1шт.
12
47612522
FOAM INSULATION,50mm x 70mm x 225mm
LH, Rad Bracket
1шт.
13
47612532
HYDRAULIC HOSE,25mm ID x 393mm L, SAE -16
Resonator
1шт.
14
47615371
HYDRAULIC HOSE,25mm ID x 225mm L, SAE -16
Resonator
1шт.
15
84285339
SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm
6шт.
16
84366338
FOAM INSULATION
484.2mm L, Left Tower, Front
1шт.
17
84366352
FOAM INSULATION
Heal Plate, Vertical
1шт.
18
84372973
FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk
LH, Tower, Front
1шт.
19
84373345
SPACER
74mm OD
1шт.
20
84374169
FOAM INSULATION
622mm L, RH, Tower, Front
1шт.
21
84374171
FOAM INSULATION
564.5mm L, RH, Tower
1шт.
22
47638695
FOAM INSULATION
199mm L, RH, Tower, Rear
1шт.
23
84374179
FOAM INSULATION
160.7mm L, RH, Tower, Lower
1шт.
24
84374180
FOAM INSULATION
452.6mm L, LH, Tower
1шт.
25
47638265
FOAM INSULATION
600.5mm L, LH, Tower, Front
1шт.
26
47688540
FOAM INSULATION
566.4mm L, LH, Rear Door
1шт.
27
47638946
COVER
Lexan Tan
1шт.
28
84383823
COVER
LH, Chassis Vent
1шт.
29
84383826
COVER
RH, Chassis Vent
1шт.
30
84544550
HOSE ASSY.,19.05mm ID x 905mm L, SAE 100R17
Valve Supply
1шт.
32
87611184
DECAL,LWA 103, 100mm x 110mm
1шт.
33
87595771
ISOLATOR,200mm L x 50mm W x 3.2mm Thk
1шт.
34
L18331
CABLE TIE,375.9mm L, Nylon, Black
2шт.
Выбрано товаров: 34
