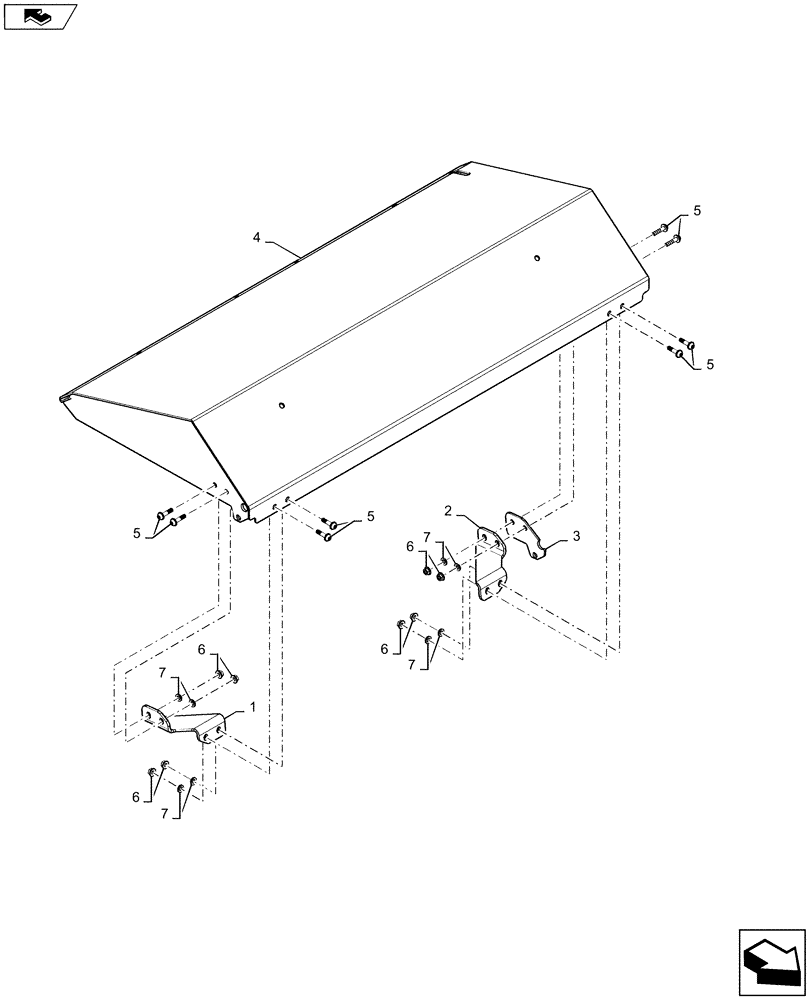

Запчасти Case TR270 (90.100.BI[02]) - REAR HOOD ASSY (15-OCT-2013 & BEFORE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47435769

BRACKET

Gusset, RH, Gray

1шт.

2

47435771

BRACKET

Gusset, LH, Gray

1шт.

3

47435872

BRACKET

Stiffner, Hood Pivot

1шт.

4

47440317

HOOD

Tilt, Gray

1шт.

5

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

8шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

8шт.

7

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

8шт.
