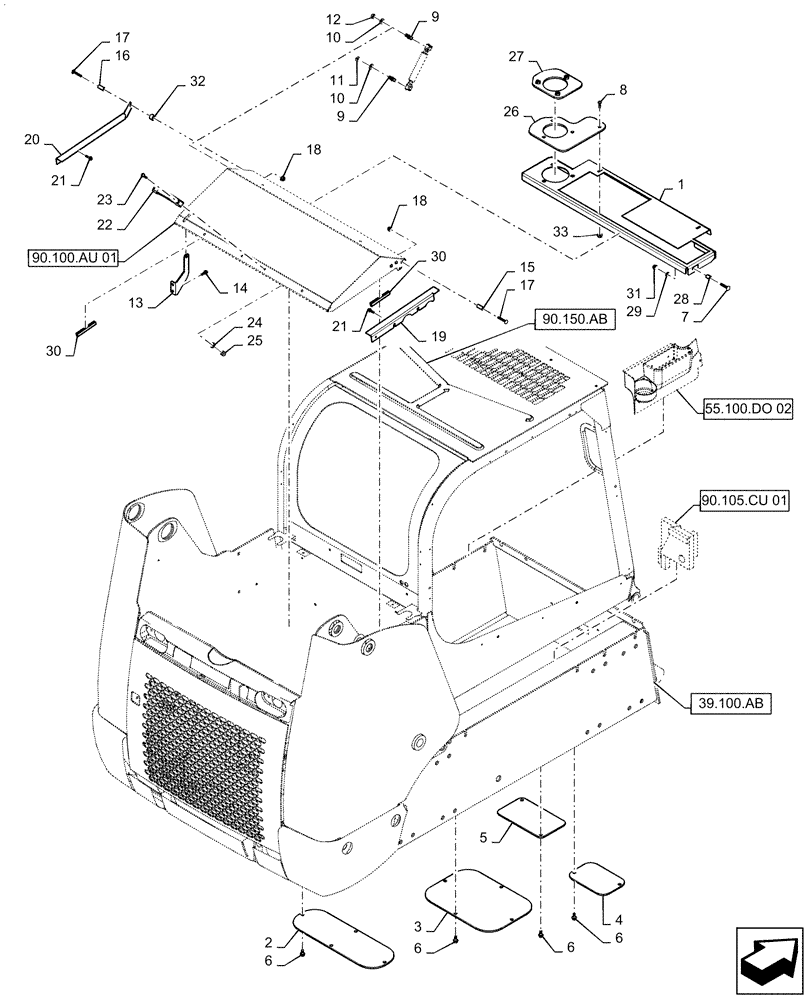

Запчасти Case TR270 (90.100.AG) - ENGINE HOOD, REAR PANEL SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47613802

ANGLE

Rear Deck

1шт.

2

47717894

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

1шт.

3

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

4

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

1шт.

5

47717909

PLATE,275mm L x 160mm W x 6.35mm Thk

1шт.

6

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

12шт.

7

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

8

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

9

189609A1

BALL STUD,M8 x 1.25

, Years: -25-SEP-16

2шт.

9

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

, Start Year: 26-SEP-16

2шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

13

47467486

ANGLE

Hood Lock Tab

1шт.

14

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

15

47513620

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 28.58mm L

1шт.

16

47513565

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 23.81mm L

1шт.

17

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

18

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

19

84605091

SUPPORT

RH, Hood Stop

1шт.

20

47363956

ANGLE

LH, Hood Stop

1шт.

21

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

22

406256A1

HANDLE

Rear Hood

1шт.

23

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

24

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

25

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

26

47434237

BRACKET

Stiffner Rear Deck

1шт.

27

47434973

BRACKET

Exhaust Stiffner

1шт.

28

47435764

SPACER,6.3mm ID x 9.5mm OD x 13mm L

2шт.

29

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

30

87702286

TRIM,Bulk, 1/8" x 30480mm L

2шт.

31

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

32

47513658

SPACER,13.87mm ID x 21.34mm OD x 15.88mm L

1шт.

33

86511444

FLANGE NUT,Hex, M6 x 1

2шт.
