Запчасти Case TR270 (88.100.90[11]) - DIA KIT, GLASS FRONT DOOR (88) - ACCESSORIES

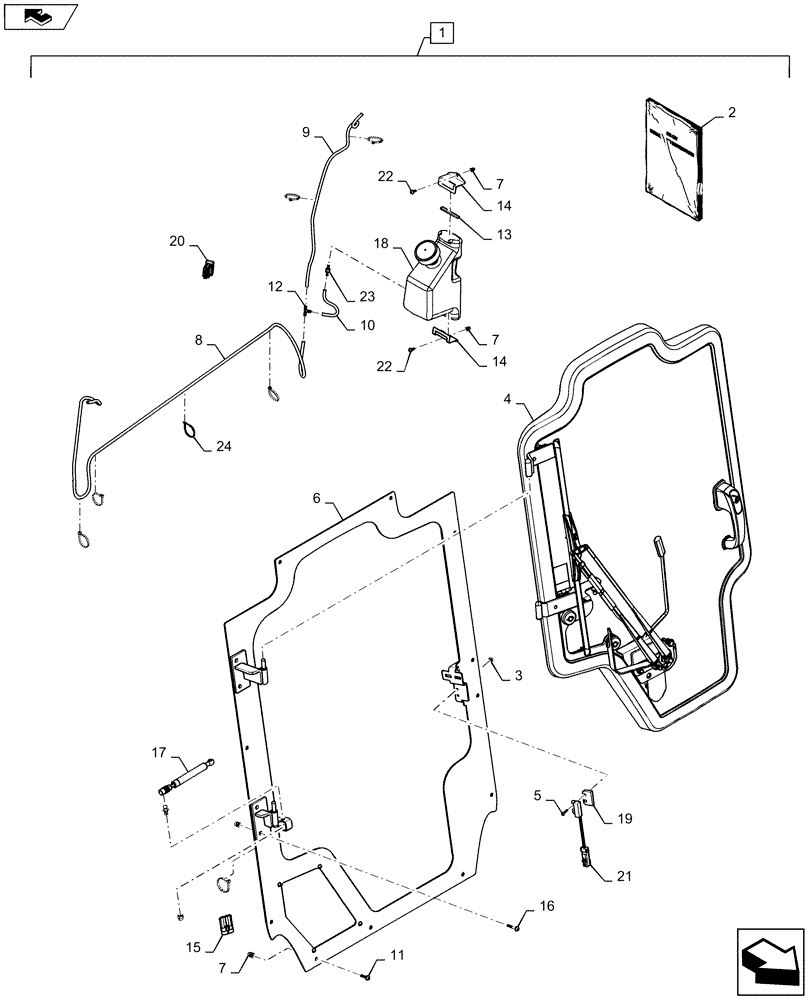

Схема запчастей Case TR270 - (88.100.90[11]) - DIA KIT, GLASS FRONT DOOR (88) - ACCESSORIES
23
19
13
17
14
14
22
18
3
21
10
5
9
7
16
1
home
6
7
22
24
2
4
11
12
15
20
8
7

Артикул

Название

Примечание

Количество

1

47547136

KIT

Glass Front Door, Incl 2 - 24

1шт.

2

47547137

INSTRUCTION

Sheet, Glass Front Door

1шт.

3

100012

NUT,M4 x 0.7, Cl 8

2шт.

4

47405924

DOOR

Assy, Front

1шт.

5

84183818

SCREW,Torx Pan HD, M4 x 23.1mm, Cl 4.8

2шт.

6

47491470

DOOR

Assy, Jamb

1шт.

7

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

17шт.

8

84281703

HOSE WASHER,4mm ID x 1650mm L, SAE J1037

Front, Windshield

1шт.

9

84285452

HOSE WASHER,4mm ID x 672mm L, SAE J1037

Rear, Windshield

1шт.

10

84285453

HOSE WASHER

Bottle

2шт.

11

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

11шт.

12

84306335

TEE

Fitting, Hose Barbed Connector

1шт.

13

84322854

FOAM INSULATION,684mm L x 6mm W x 3mm Thk

190mm, Strip, Sealing

1шт.

14

84326923

BRACKET

Washer Bottle, CE Gray

2шт.

15

84331404

WIRE CONNECTOR

Jumper, Bypass

1шт.

16

84359102

SCREW,Round HD, M6 x 35mm, Cl 10.9

4шт.

17

84378453

GAS STRUT,248mm L Extended, 171mm Compressed

Spring

1шт.

18

84389613

BOTTLE

Assy, Windshield Washer

1шт.

19

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

20

87335499

SWITCH

Rocker, Windshield Wiper/Washer

1шт.

21

87392235

SENSOR

Reed Non Contact Normally Open

1шт.

22

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

23

K307050

VALVE

Non-Return

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

Выбрано товаров: 24
