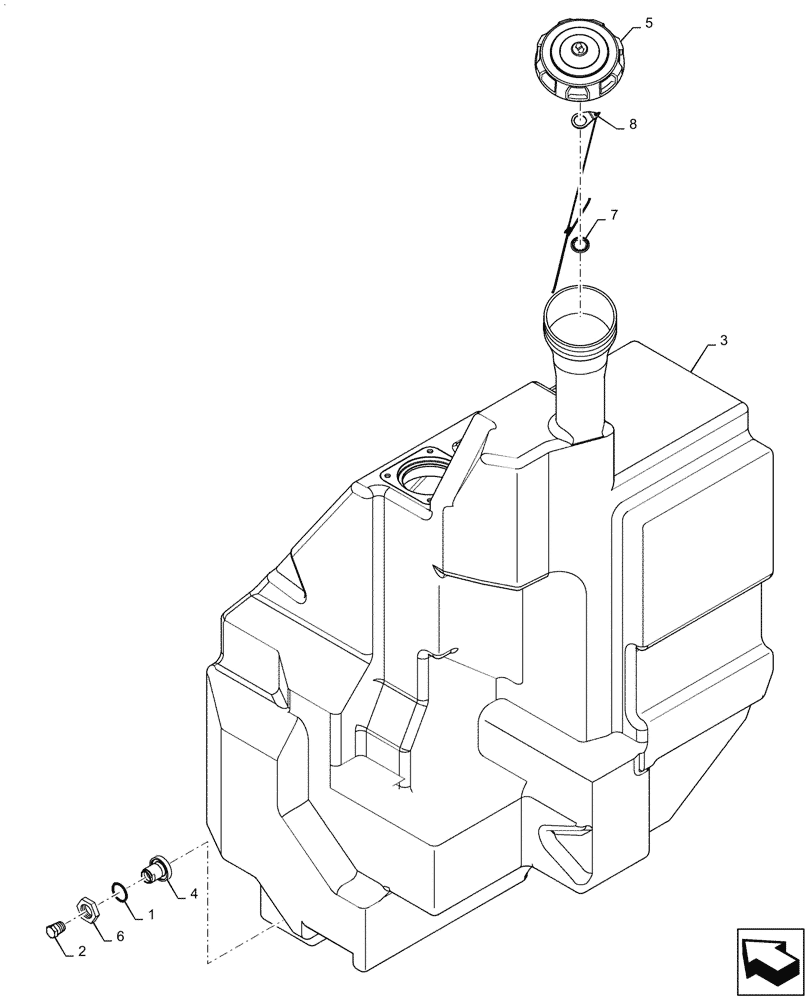

Запчасти Case TR270 (10.216.AI) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

1

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

2

9576801

PLUG,1/4" - 18 NPT

1шт.

3

84599869

FUEL TANK

20.0 L (5.28 Gal)

1шт.

4

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

1шт.

5

48088756

Fuel Tank

FILLER CAP

1шт.

6

1251791C1

JAM NUT,3/4" - 16 LH Thread

1шт.

7

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

1шт.

8

84370069

CHAIN

Fuel Cap

1шт.
