Запчасти Case TR270 (88.100.55[06]) - DIA KIT, RADIO (88) - ACCESSORIES

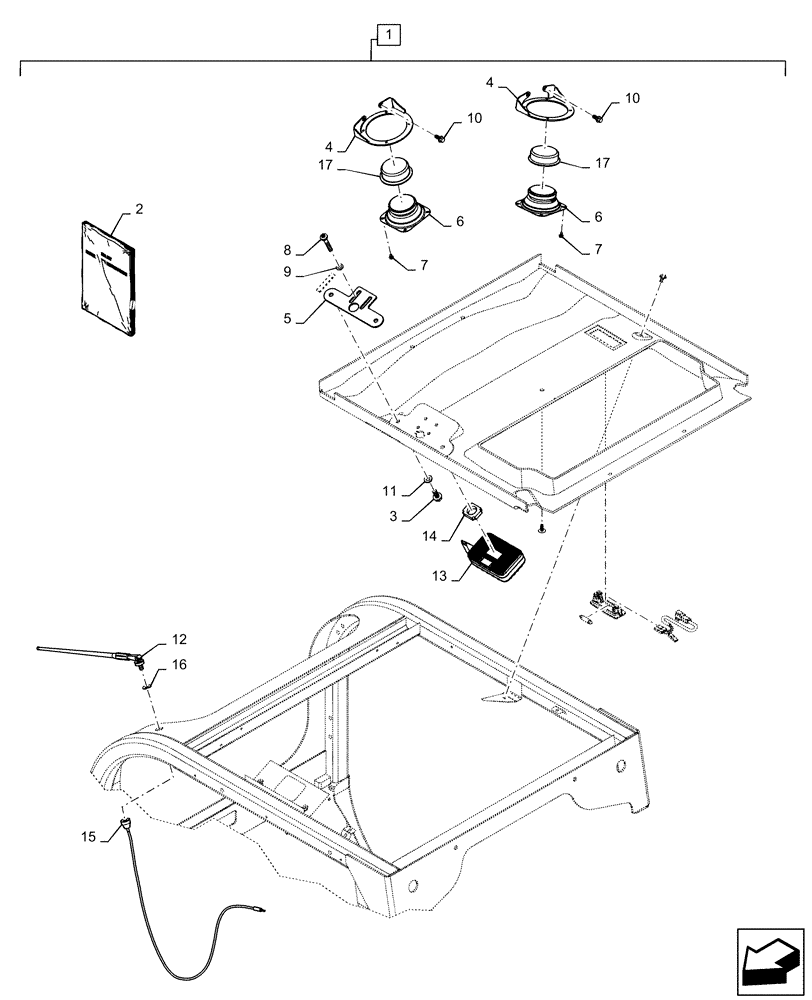

Схема запчастей Case TR270 - (88.100.55[06]) - DIA KIT, RADIO (88) - ACCESSORIES
10
6
16
15
5
9
3
12
4
7
6
8
10
1
17
17
13
4
2
11
14
7

Артикул

Название

Примечание

Количество

1

47582615

KIT

Radio, Incl 2 - 17

1шт.

2

47582616

INSTRUCTION

Sheet, Radio Kit

1шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

4

84552202

BRACKET

Sheet, Speaker

2шт.

5

84281708

BRACKET

Sheet, Radio, Gray

1шт.

6

84298557

SPEAKER

4" Sealed Hi-Performance

2шт.

7

86500939

SELF-TAP SCREW,HWH, #10 - 16 x 3/8"

8шт.

8

13272611

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

4шт.

9

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

10

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

4шт.

11

86625241

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

2шт.

12

197745A1

ANTENNA

1шт.

13

87672223

RADIO,WB/AM/FM/XM/AUX

Mini Weather Band, AM - FM - XM Band

1шт.

14

84363241

SPACER,25mm ID

Radio Cooling

1шт.

15

381659A1

ELECTRIC CABLE

Antenna

1шт.

16

395387A1

SEALING WASHER,6.4mm ID x 22.3mm OD x 1.6mm Thk

1шт.

17

47560138

FOAM INSULATION,Speaker Cover

Foam, Speaker Cover

2шт.

Выбрано товаров: 17
