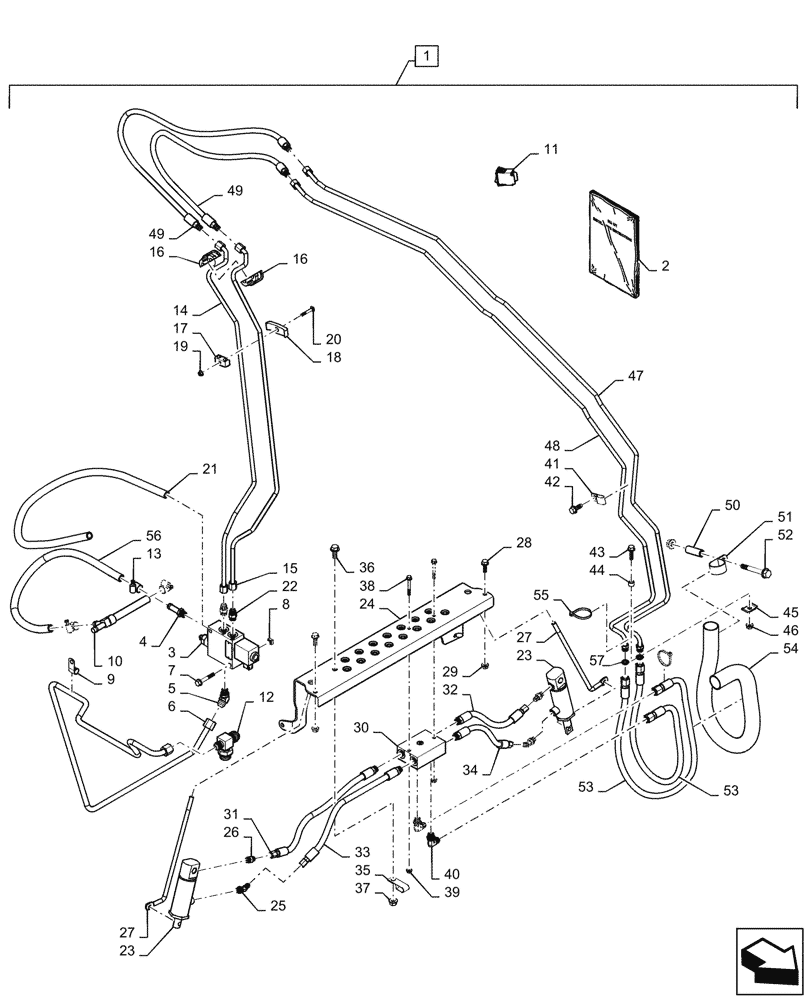

Запчасти Case TR270 (88.100.35[07]) - DIA KIT, HYDRAULIC COUPLER, RADIAL BOOM (88) - ACCESSORIES

1

47435670

SERVICE KIT

Hydraulic Coupler, Incl 2 - 56

1шт.

2

47435671

INSTRUCTION

Sheet, Hydraulic Coupler

1шт.

3

84256406

HYDRAULIC VALVE

Coupler

1шт.

4

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

5

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

1шт.

6

84546406

HYD TUBE

Coupler

1шт.

7

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

9

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

10

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

Option

1шт.

11

84251346

SWITCH

Rocker, Hydraulic Coupler

1шт.

12

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

1шт.

13

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

3шт.

14

84259529

HYD TUBE

Coupler

1шт.

15

84259531

HYD TUBE

Coupler

1шт.

16

84277054

BRACKET, SUPPORTING

Hydraulic Tube

2шт.

17

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double

1шт.

18

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube Cap

1шт.

19

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

20

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

1шт.

21

84292314

HOSE,12.7mm ID x 460mm L

Hydraulic Coupler Drain

1шт.

22

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

23

87442337

CYLINDER,Double Acting, 19.05mm Rod, 48mm Stroke

Coupler

2шт.

24

47426338

STEP

Coupler Gray

1шт.

25

86512993

ELBOW,45 Degree, 7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

26

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

2шт.

27

84387739

ROD

Coupler Position Indicator

2шт.

28

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

29

86619801

FLANGE NUT,M8 x 1.25, Cl 8

Privilege Torque

4шт.

30

47418981

CHECK VALVE

Coupler

1шт.

31

47426340

HYDRAULIC HOSE,6.35mm ID x 456mm L, SAE 100R16

1шт.

32

47426339

HYDRAULIC HOSE,6.35mm ID x 240mm L, SAE 100R16

1шт.

33

47426341

HYDRAULIC HOSE,6.35mm ID x 469mm L, SAE 100R17

1шт.

34

47426342

HYDRAULIC HOSE,6.35mm ID x 255mm L, SAE 100R17

1шт.

35

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

36

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

37

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

38

87026500

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

39

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

40

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

41

605025

CLAMP,3/8", Coated, 3/8" Bolt

Vinyl Coated

2шт.

42

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

43

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

44

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

1шт.

45

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Tube

1шт.

46

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

47

84551172

HYD TUBE

Coupler

1шт.

48

84551175

HYD TUBE

Coupler

1шт.

49

84555960

HYDRAULIC HOSE,6.35mm ID x 789mm L, SAE 100R17

Coupler

2шт.

50

87698776

SPACER,8.48mm ID x 12.7mm OD x 36.5mm L

1шт.

51

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

52

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

53

47426343

HOSE ASSY.,6.35mm ID x 786mm L, SAE 100R17

Step To Coupler, Incl Ref 53

2шт.

54

47401099

HOSE,36.1mm ID x 825mm L

Coupler Hose

1шт.

55

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

56

84201227

HOSE,12.7mm ID x 615mm L

Coupler Drain

1шт.

57

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
