Запчасти Case TR270 (10.202.AK) - AIR CLEANER - AIR INTAKE PARTS (10) - ENGINE

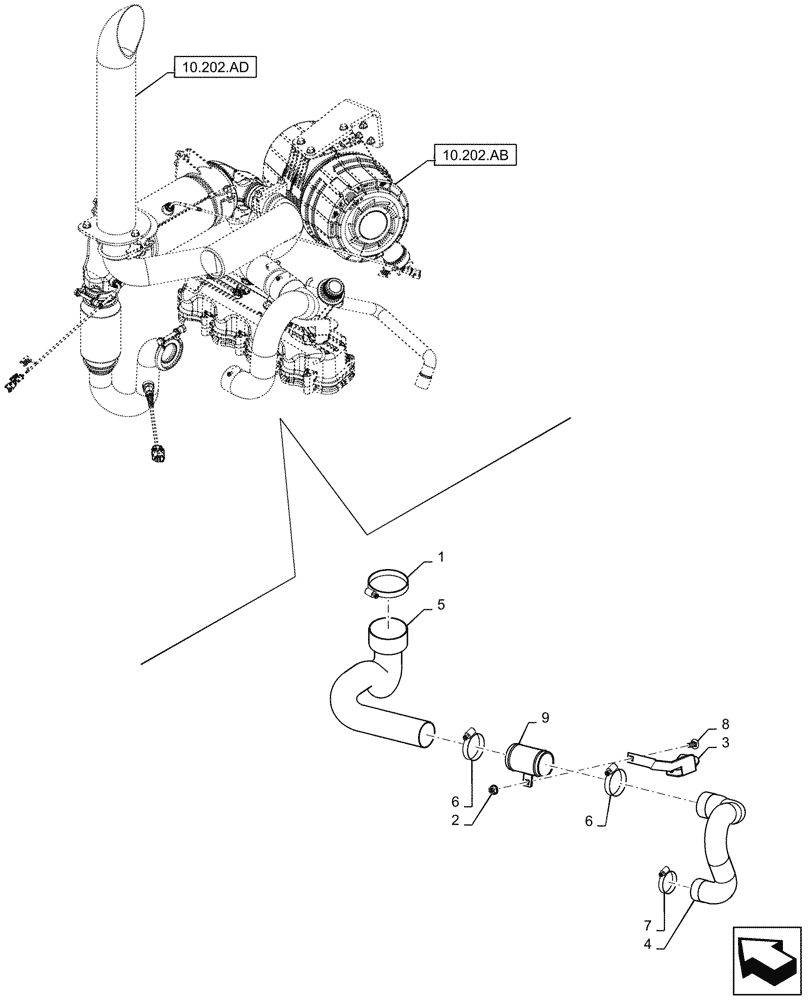

Схема запчастей Case TR270 - (10.202.AK) - AIR CLEANER - AIR INTAKE PARTS (10) - ENGINE
10.202.ad
9
6
2
5
7
6
8
3
1
4
10.202.ab

Артикул

Название

Примечание

Количество

1

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

2

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

3

47370315

BRACKET

Air Cleaner

1шт.

4

47430065

HOSE

Coupler To Turbo, Years: -31-MAR-15

1шт.

4

47823397

INTAKE AIR HOSE

Coupler To Turbo, Start Year: 01-APR-15

1шт.

5

84597626

HOSE

Air Cleaner To Coupler

1шт.

6

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

7

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

8

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

9

87610560

HOSE

Intake , Years: -14-AUG-14

1шт.

9

47711885

FITTING

Intake Hose, Start Year: 13-AUG-14

1шт.

Выбрано товаров: 11
