Запчасти Case TR270 (82.300.AN[24]) - BOLT ON CUTTING EDGE, 84" BUCKET (82) - FRONT LOADER & BUCKET

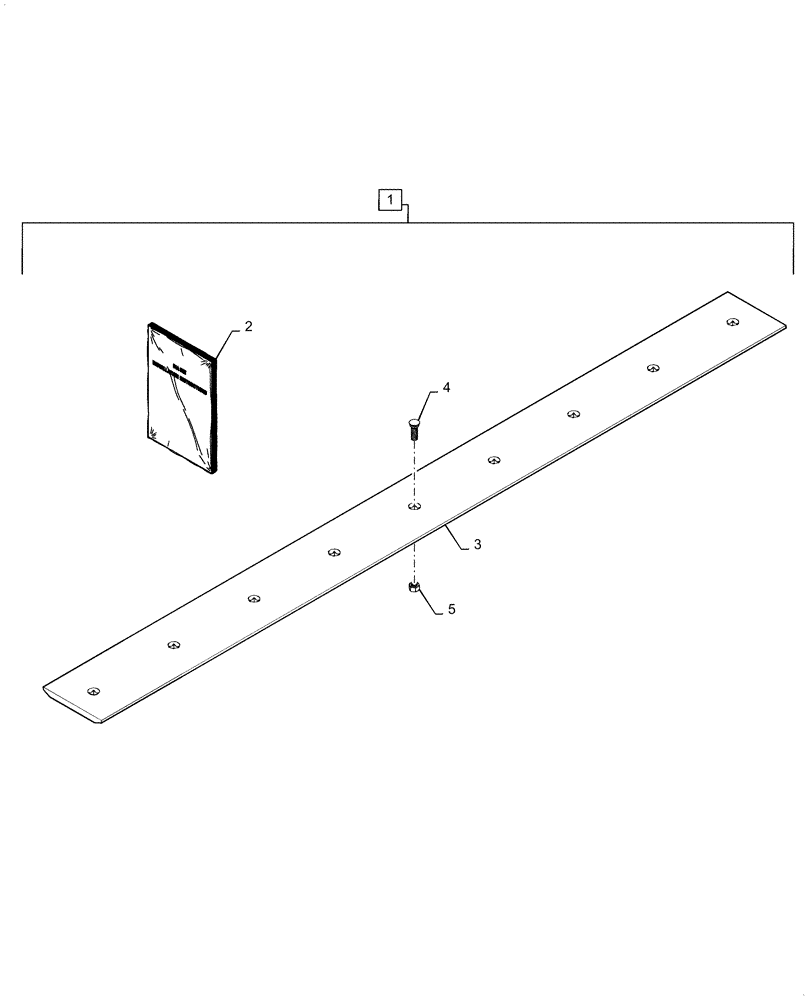

Схема запчастей Case TR270 - (82.300.AN[24]) - BOLT ON CUTTING EDGE, 84" BUCKET (82) - FRONT LOADER & BUCKET
2
5
3
1
4

Артикул

Название

Примечание

Количество

1

84402199

KIT

Bolt On Cutting Edge, 84" Bucket, Gray, Incl 2 - 5

1шт.

2

84402215

INSTRUCTION

Sheet

1шт.

3

86577173

CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2168.5mm L

1шт.

9-3/4" Between Bolt Holes

1шт.

4

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

9шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

9шт.

Выбрано товаров: 6
