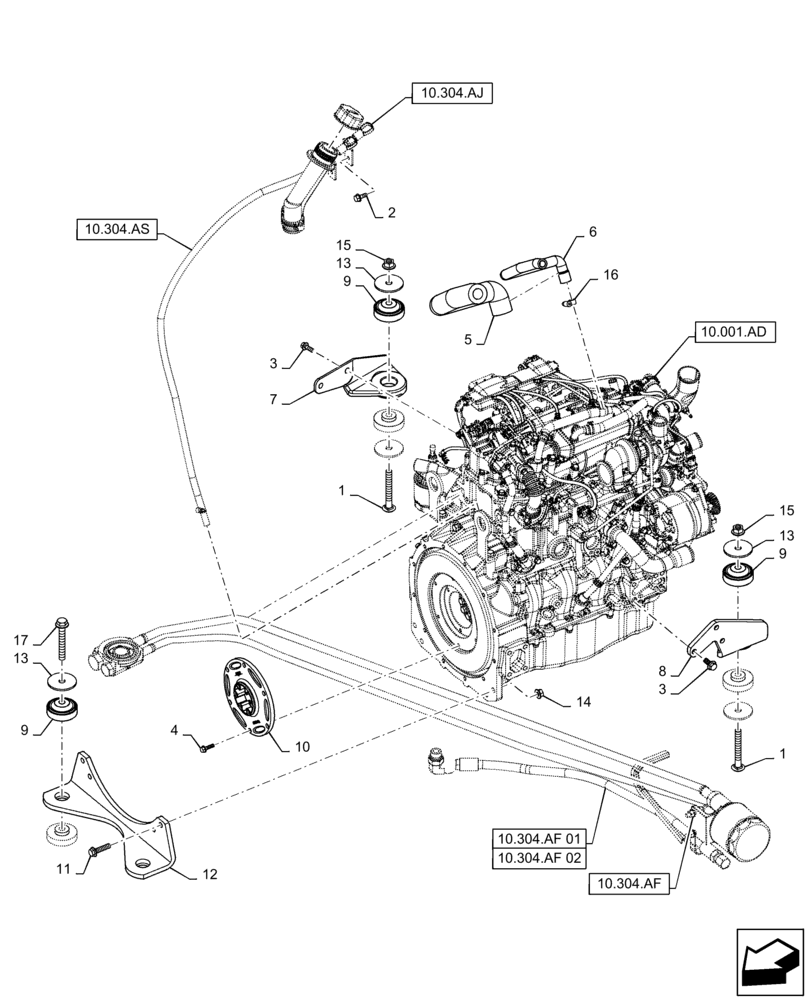

Запчасти Case TR270 (10.001.AK) - ENGINE MOUNT (10) - ENGINE

1

300663

CARRIAGE BOLT,M16 x 2.0 x 120mm, Cl 8.8

2шт.

2

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

3

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

5шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

6шт.

5

47384514

HOSE

CCV

1шт.

6

47497209

INSULATION,28mm ID x 562.5mm L

1" CU x 1/2" Tube

1шт.

7

47600713

MOUNT

RH, F5C

1шт.

8

47600714

MOUNT

LH, F5C

1шт.

9

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Mount

8шт.

10

87692685

FLEXIBLE COUPLING,215.9mm OD

Flexible

1шт.

11

87670764

BOLT,M12 x 61.8mm, Cl 10.9

4шт.

12

84530877

MOUNT

Pump F5C

1шт.

13

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

6шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

15

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

16

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

17

87015923

BOLT,M16 x 125.4mm, Cl 10.9

2шт.
