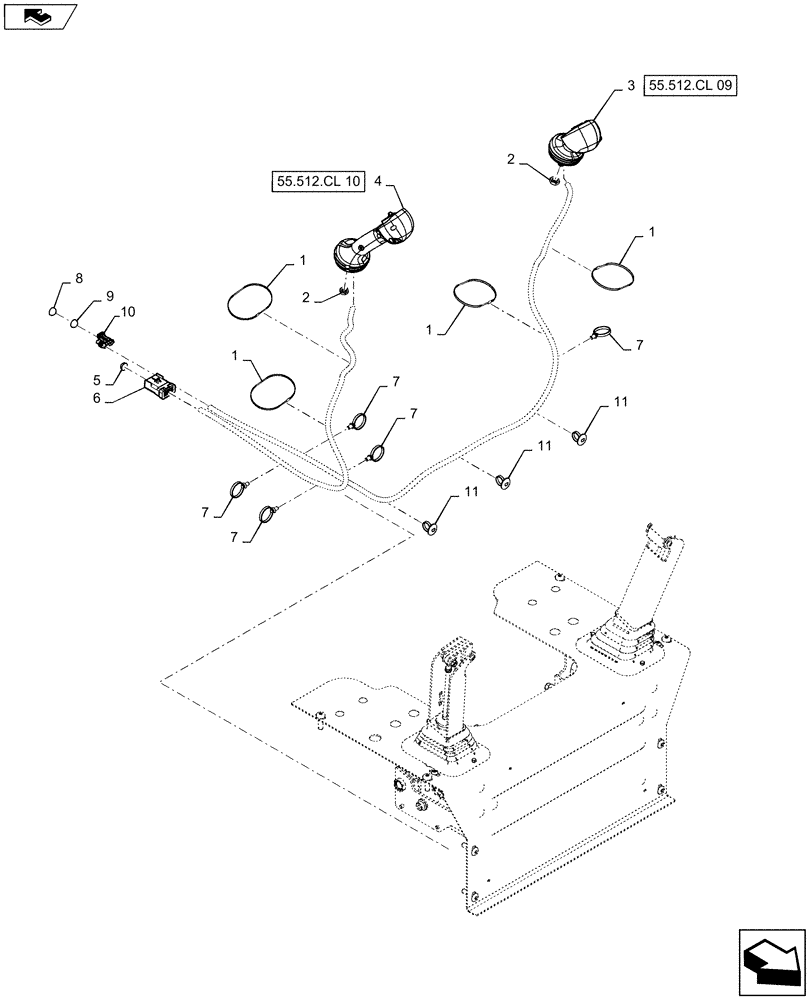

Запчасти Case TR270 (55.512.CL[08]) - LEVEL 200 HANDLE GRIPS, 2-SPEED MECHANICAL CONTROLS, W/O MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

4шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

84201271

HANDLE GRIP

LH, Level 200, Horn/2-Speed

1шт.

4

84201274

LEVER

RH, Level 200, Park Brake/Proportional Hydraulics/Ride Control

1шт.

5

84279937

PLUG,Apex, 2.80mm

Used On RH Grip

5шт.

6

87382923

ELEC CONNECTOR,Male, 10 Cavities

Used On RH Grip

1шт.

7

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

8

87689636

PLUG,Red, Taxi Seal Connector Cavity

Used On LH Grip

2шт.

9

87689643

CLIP,4.8mm ID

Wedge, Used On LH Grip

1шт.

10

87697724

ELEC CONNECTOR,Female, 4 Cavities

Used On LH Grip

1шт.

11

378884A2

STRAP,254mm L

Nylon

3шт.
