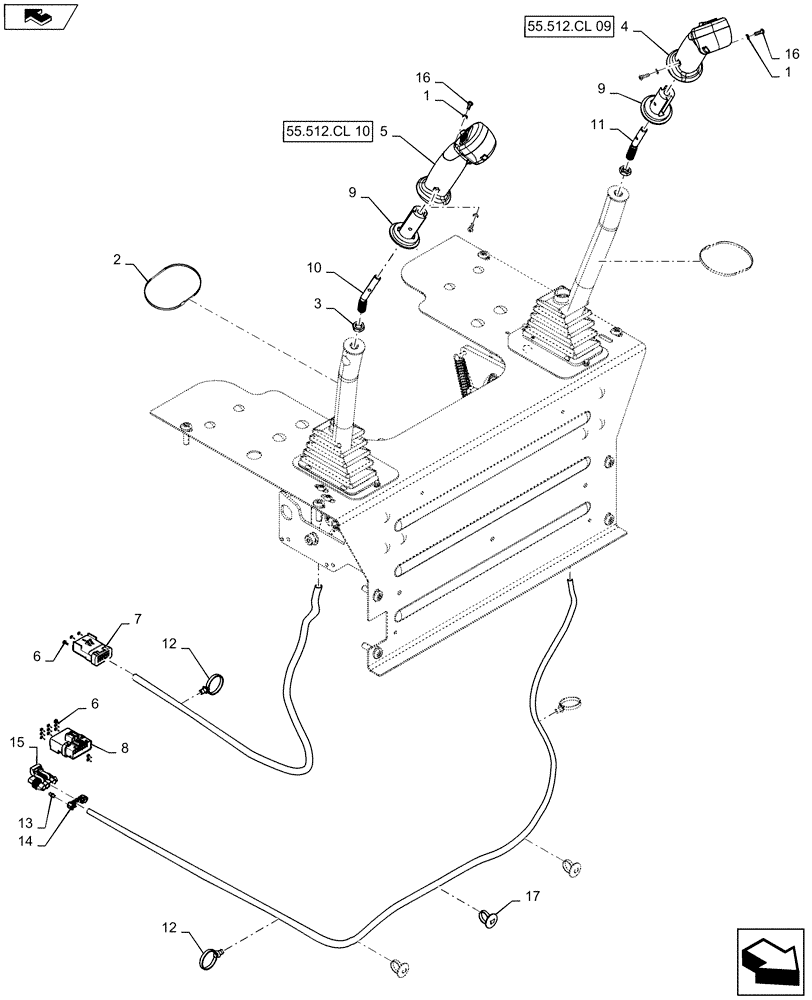

Запчасти Case TR270 (55.512.CL[08]) - LEVEL 200 HANDLE GRIPS, 2-SPEED MECHANICAL CONTROLS, W/O MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS

1

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

2шт.

3

9706685

NUT,M12 x 1.75, Cl 8

2шт.

4

84201279

HANDLE GRIP

LH, Level 200, Horn/2-Speed

1шт.

5

84201282

HANDLE GRIP

RH, Level 200, Park Brake/Proportional Hydraulics/Ride Control

1шт.

6

84279937

PLUG,Apex, 2.80mm

16шт.

7

87382923

ELEC CONNECTOR,Male, 10 Cavities

1шт.

8

87382927

ELEC CONNECTOR,Male, 14 Cavities

1шт.

9

87527964

ADAPTER

Handle, Pilot Controls

2шт.

10

87619016

ROD

Angled, RH Grip

1шт.

11

87619017

ROD

Angled, LH Grip

1шт.

12

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

13

87689636

PLUG,Red, Taxi Seal Connector Cavity

1шт.

14

87689643

CLIP,4.8mm ID

Wedge

1шт.

15

87697724

ELEC CONNECTOR,Female, 4 Cavities

1шт.

16

87742597

HEX SOC SCREW,Locking, #10 - 32 x 5/8"

4шт.

17

378884A2

STRAP,254mm L

Nylon

3шт.
