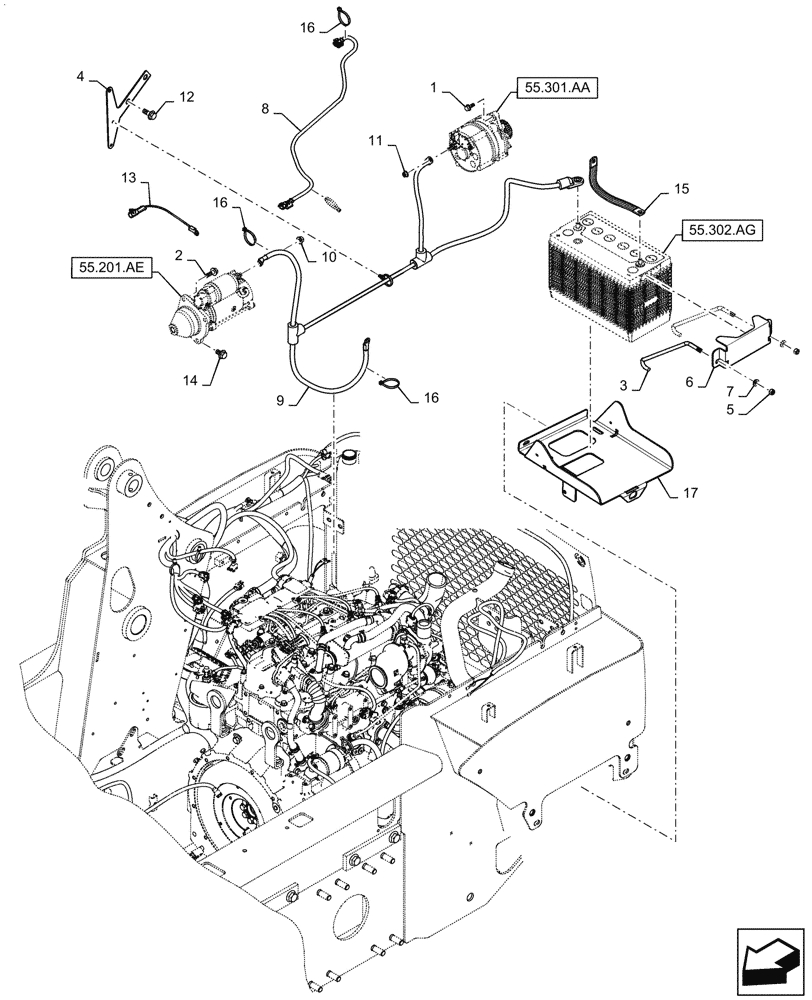

Запчасти Case TR270 (55.302.AV) - ENGINE ELECTRICAL, 3-JUN-2015 & OLDER (55) - ELECTRICAL SYSTEMS

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

2

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

3

47505880

HOOK

Battery Tie Down

2шт.

4

47529572

BRACKET

Battery Cable

1шт.

5

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

6

84420303

STRAP

Battery Mount

1шт.

7

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

8

84529949

WIRE HARNESS

Fuel Filter Jumper

1шт.

9

84605008

POS BATTERY CABLE

F5C, Years: -30-NOV-14

1шт.

9

47800584

POS BATTERY CABLE

F5C, Start Year: 01-DEC-14

1шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

12

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

13

87053083

HARNESS

Starter Jumper

1шт.

14

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

15

D140369

GROUND STRAP,260mm L

Ground

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

17

47480704

BRACKET

Battery Tray

1шт.

Weldment Required for Installation

1шт.
