Запчасти Case TR270 (50.200.AA) - A/C COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL

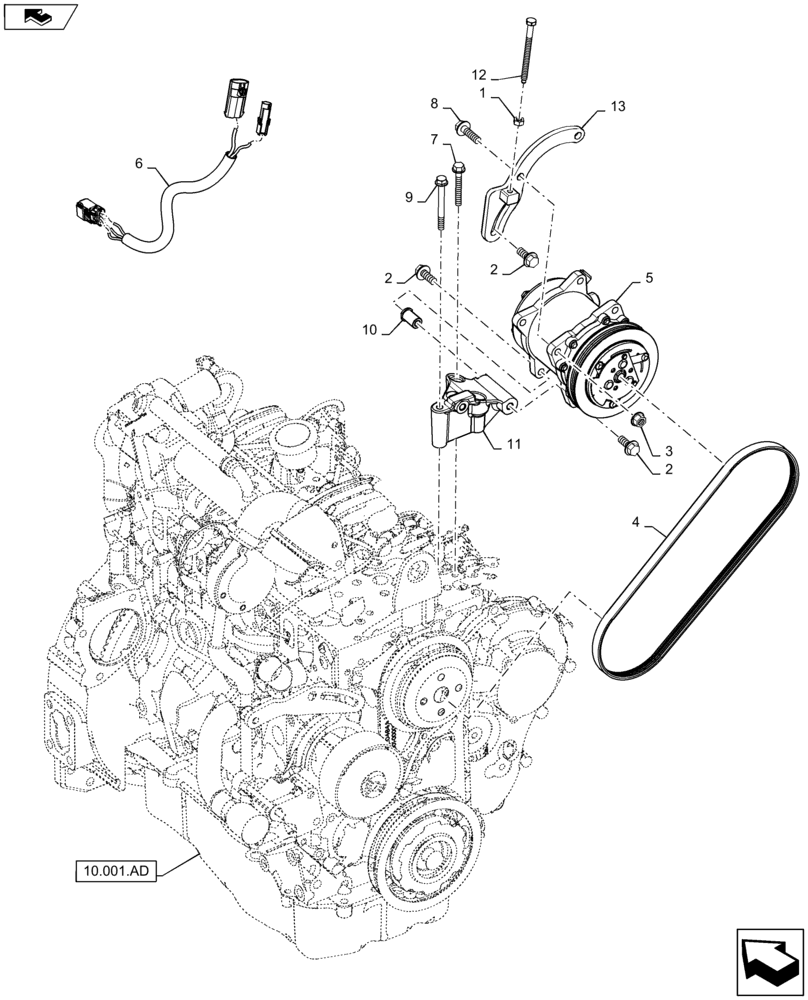

Схема запчастей Case TR270 - (50.200.AA) - A/C COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL
12
7
5
10
6
home
13
4
2
11
2
9
8
2
3
10.001.ad
1

Артикул

Название

Примечание

Количество

1

9706690

NUT,M8 x 1.25, Cl 8

1шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

3

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

4

84317961

BELT,14.24mm W x 957mm L, 4 Ribs

A/C Drive

1шт.

5

84321961

AIRCOND. COMPRESSOR,12V, W/ Pulley

, Years: -01-DEC-14

1шт.

5

84321961R

REMAN-COMPRESSOR,12V, W/ Pulley

, Years: -01-DEC-14

1шт.

5

84321961C

AIRCOND. COMPRESSOR,12V, W/ Pulley

Return Number, Years: -01-DEC-14

1шт.

5

47741862

AIRCOND. COMPRESSOR,12V, W/Clutch, W/ Pulley

, Start Year: 01-DEC-14

1шт.

5

47741862R

REMAN-A/C COMPRESSOR

, Start Year: 01-DEC-14

1шт.

5

47741862C

CORE-A/C COMPRESSOR

Return Number

1шт.

6

84423509

WIRE HARNESS

HVAC Jumper

1шт.

7

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

8

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

9

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

1шт.

10

87622384

BUSHING,11mm ID x 20mm OD x 28mm L

A/C Mounting

1шт.

11

87649945

BRACKET

A/C Compressor

1шт.

12

87649979

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

13

87711926

BRACKET

Tensioner

1шт.

Выбрано товаров: 18
