Запчасти Case TR270 (50.100.AC[01]) - HEATER PLUMBING (50) - CAB CLIMATE CONTROL

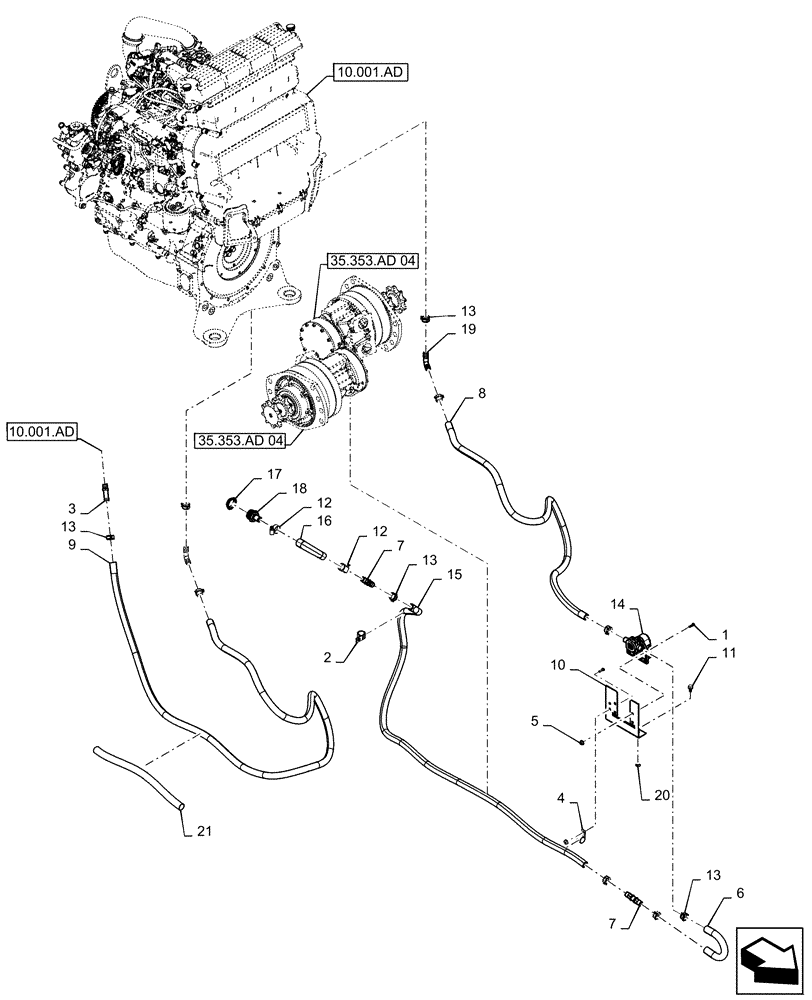

Схема запчастей Case TR270 - (50.100.AC[01]) - HEATER PLUMBING (50) - CAB CLIMATE CONTROL
10.001.ad
18
13
5
7
2
21
1
10
20
3
8
17
13
14
7
16
13
15
12
6
9
19
11
13
4
12
35.353.ad 04
35.353.ad 04
10.001.ad

Артикул

Название

Примечание

Количество

1

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.

2

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

4

700514

CLAMP,3.8mm, Coat, M8 Bolt

Cable

1шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

6

47627999

HEATER HOSE,15.5mm ID, Formed

15.5mm ID, Formed

1шт.

7

47707866

FITTING,5/8” Hose Barb Union

Hose, 5/8" Union

2шт.

8

84357678

HOSE,15.5mm ID x 1635mm L

Heater Supply, Guarded

1шт.

9

84357840

HOSE,15.5mm ID x 2740mm L

Heater Return, Guarded

1шт.

10

84559122

BRACKET

Water Valve and Dryer

1шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

12

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

10шт.

14

87520839

VALVE

Water Assy

1шт.

15

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

1755mm L, Supply

1шт.

16

87617163

HEATER HOSE,15.00 mm ID, 18.00 mm ID x 73.00 mm, SAE 20R4

1шт.

17

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

Only if Gasket is Needed

1шт.

Remove plug from cylinder head. Reuse Gasket (if possible). Remove from plug and install on fitting. Torque to 35 - 45 Nm (25.8 - 33.2 FT LB).

1шт.

18

504249332

FITTING,M35 x 1.5, 18mm

Heater Hose

1шт.

19

127083A1

ELBOW,16mm OD x 17mm OD Bead

Heater Hose

2шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

21

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Guard Hose

1шт.

Выбрано товаров: 22
