Запчасти Case TR270 (35.734.AA[01]) - HYDRAULIC COUPLER CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS

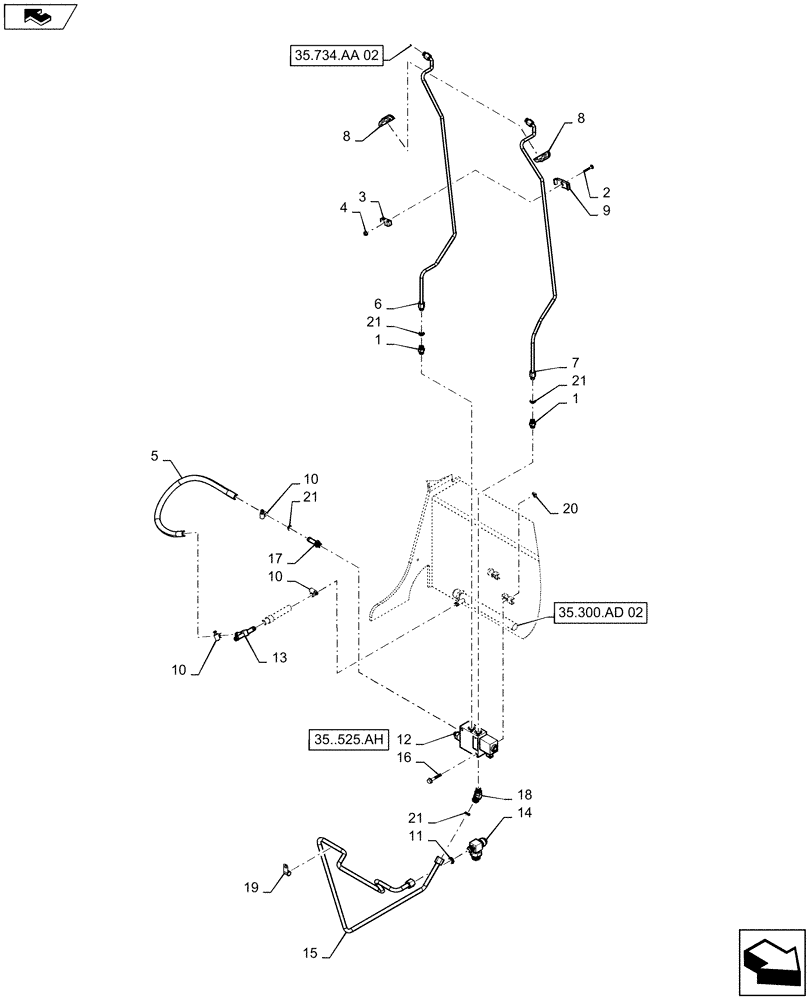

Схема запчастей Case TR270 - (35.734.AA[01]) - HYDRAULIC COUPLER CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS
21
35.734.aa 02
10
18
6
10
21
15
10
3
14
5
2
8
35.300.ad 02
8
home
7
21
17
8
9
13
11
21
1
1
12
35..525.ah
19
16
20
4

Артикул

Название

Примечание

Количество

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

2шт.

2

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

1шт.

3

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

5

84292314

HOSE,12.7mm ID x 460mm L

Hose, Hyd Coupler Drain

1шт.

6

84259531

HYD TUBE

Hyd Coupler

1шт.

7

84259529

HYD TUBE

Hyd Coupler

1шт.

8

84277054

BRACKET, SUPPORTING

Hyd Tube

2шт.

9

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Double

1шт.

10

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

3шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

84256406

HYDRAULIC VALVE

Coupler, Complete

1шт.

13

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

Drain

1шт.

14

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

12-08-12

1шт.

15

84546406

HYD TUBE

Coupler

1шт.

16

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

17

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

Incl 21

1шт.

18

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 21

1шт.

19

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

Выбрано товаров: 21
