Запчасти Case TR270 (35.701.AX[01]) - LOADER VALVE PLUMBING (35) - HYDRAULIC SYSTEMS

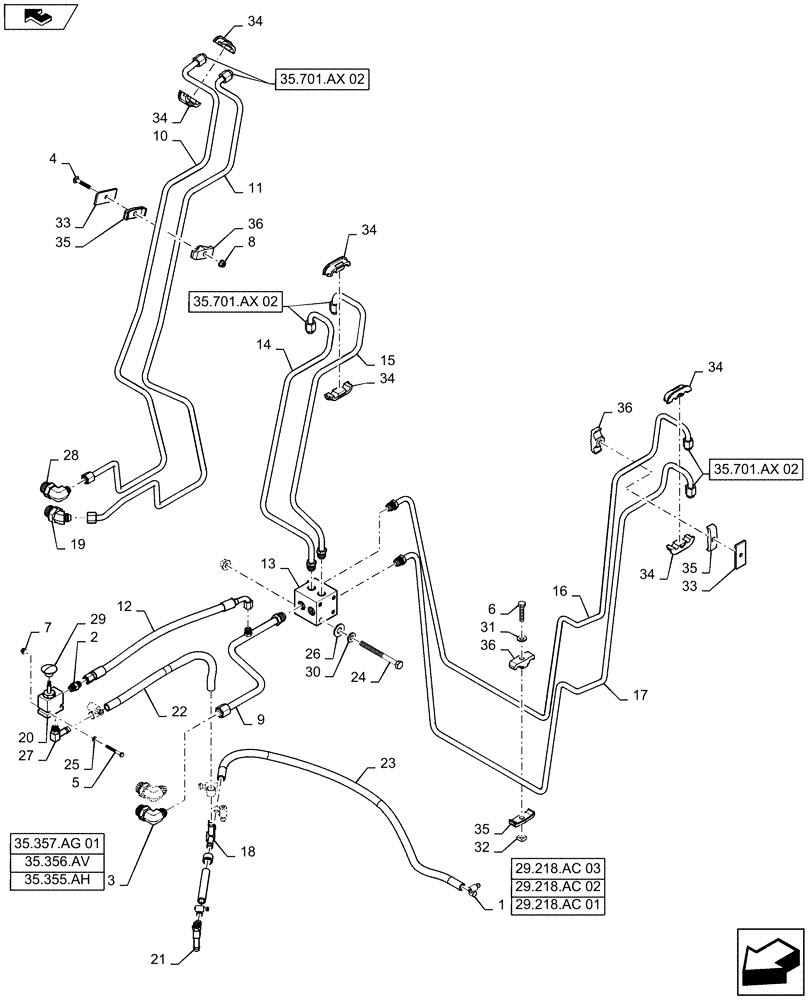

Схема запчастей Case TR270 - (35.701.AX[01]) - LOADER VALVE PLUMBING (35) - HYDRAULIC SYSTEMS
35.701.ax 02
35.355.ah
8
36
29.218.ac 02
13
35.356.av
35.357.ag 01
34
35.701.ax 02
35
12
29.218.ac 01
21
34
29.218.ac 03
35
33
10
14
35
26
16
27
3
33
32
36
17
4
34
35.701.ax 02
2
7
29
34
11
22
9
23
30
20
25
28
1
19
6
24
18
15
31
34
home
34
5
36

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

4

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

6

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

9

84181021

RIGID TUBE

Valve To Manifold

1шт.

10

84181031

RIGID TUBE

Loader Valve To Right Arm

1шт.

11

84181028

RIGID TUBE

Loader Valve To Right Arm

1шт.

12

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

Override

1шт.

13

84258823

HYDRAULIC MANIFOLD

Block

1шт.

14

84258829

RIGID TUBE

Manifold To Right Arm

1шт.

15

84258833

RIGID TUBE

Manifold To Right Arm

1шт.

16

84258841

RIGID TUBE

Manifold To Left Arm

1шт.

17

84258858

RIGID TUBE

Manifold To Left Arm

1шт.

18

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

Option

1шт.

19

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.

20

84294239

VALVE

Boom Override

1шт.

21

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

22

84299733

HOSE,12.7mm ID x 660mm L

Override To Aux Drain

1шт.

23

84299735

HOSE,12.7mm ID x 915mm L

Aux Drain To Drain Manifold

1шт.

24

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Years: -01-NOV-13

2шт.

26

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

27

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.

28

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

29

87522292

KNOB

Override Valve

1шт.

30

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

31

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

32

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

33

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

34

376523A2

SUPPORT,1/2"

6шт.

35

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

36

D120679

CLAMP,Tube, 1/2"

3шт.

Выбрано товаров: 36
