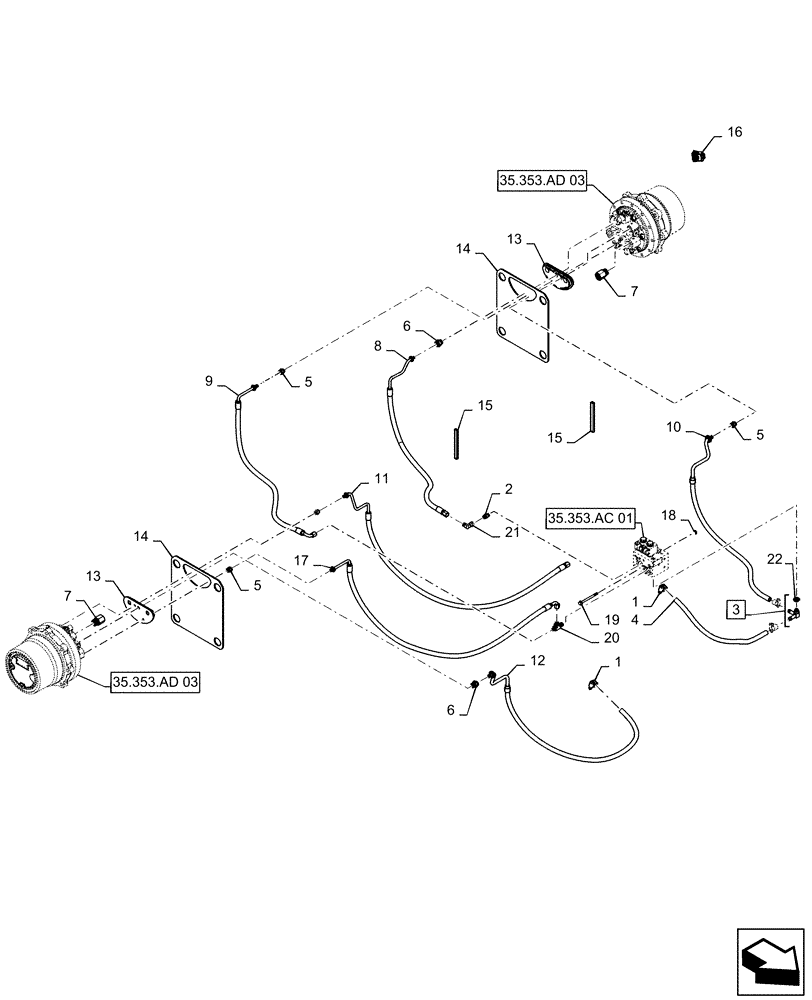

Запчасти Case TR270 (35.353.AD[04]) - TRAVEL SPEED, 2 SPEED (02-OCT-2016 & PRIOR) (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

3

84187294

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

Incl 22

1шт.

4

84257173

HOSE,12.7mm ID x 570mm L

1шт.

5

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

4шт.

6

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

2шт.

7

84277066

ADAPTER,- 12 Fem Quick Lock HP x 1-1/16" - 12, - A3512 ORB

Female, HP Quick Lok, Years: -05-JAN-16

4шт.

7

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

, Start Year: 06-JAN-16

4шт.

8

84277069

BRAKE LINE

Brake, LH

1шт.

9

84277074

FLEXIBLE HOSE,9.53mm ID x 1000mm L, SAE 100R1

2-Speed, LH

1шт.

10

84280492

HYD TUBE

Case Drain, LH

1шт.

11

84280495

RIGID TUBE

Brake, RH

1шт.

12

84280498

HYD TUBE

Case Drain, RH

1шт.

13

84331670

GROMMET

Chassis, Years: -05-JAN-16

2шт.

13

47893401

GROMMET

Chassis, Start Year: 06-JAN-16

2шт.

14

84331874

PLATE

Grommet, Gray

2шт.

15

84353803

TRIM,30.48m Bulk

480mm, Edge

1шт.

16

84388282

INDICATOR

High Speed

1шт.

17

84412426

FLEXIBLE HOSE,9.53mm ID x 1270mm L, SAE 100R17

2-Speed, RH

1шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

19

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

20

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

21

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
