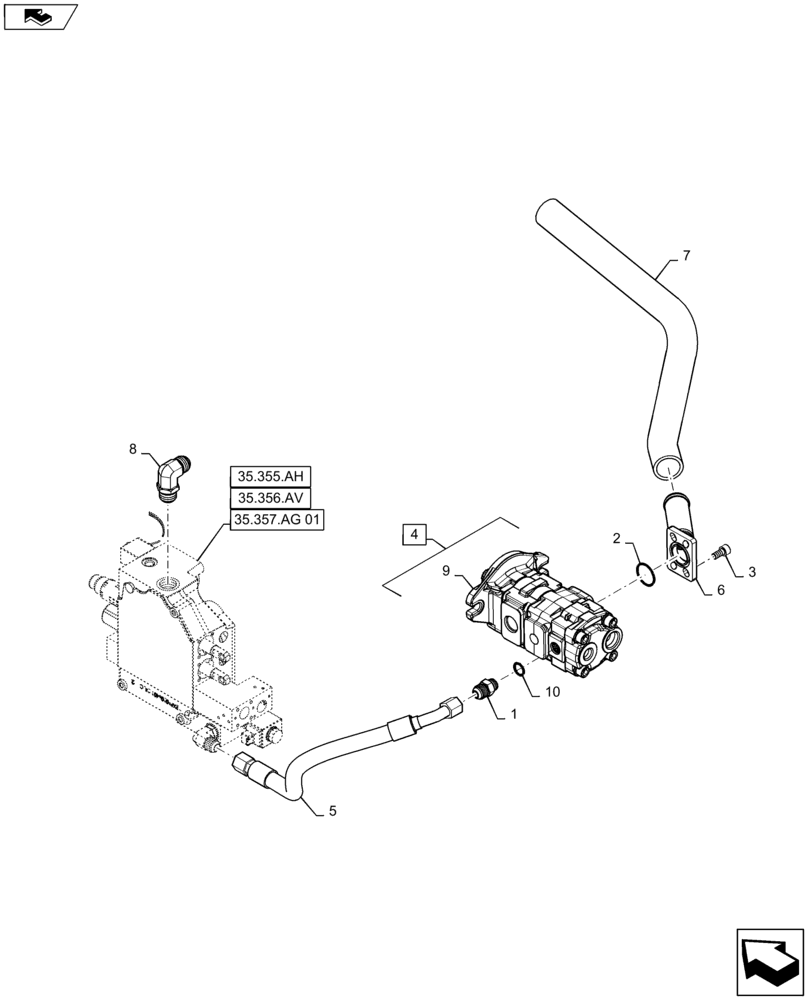

Запчасти Case TR270 (35.220.AA[02]) - HIGH FLOW GEAR PUMP (35) - HYDRAULIC SYSTEMS

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 10

1шт.

2

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

3

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

4

84256248

PUMP,34.1 CC

34.1/12.5CC Gear, Incl 9

1шт.

5

84329005

HOSE,15.88mm ID x 594mm L, SAE 100R17

High Flow Supply, Years: -03-JUN-15

1шт.

5

47836898

HOSE

High Flow Supply, Start Year: 04-JUN-15

1шт.

6

84385861

ADAPTER

Gear Pump Suction

1шт.

7

84387451

HOSE

Gear Pump Suction

1шт.

8

86512952

ELBOW,90 Degree, 1-5/16" - 12 JIC x 1" - 11-1/2 NPTF

1шт.

9

84389262

SEAL KIT

Incl In 4

1шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
