Запчасти Case TR270 (35.220.AA[01]) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS

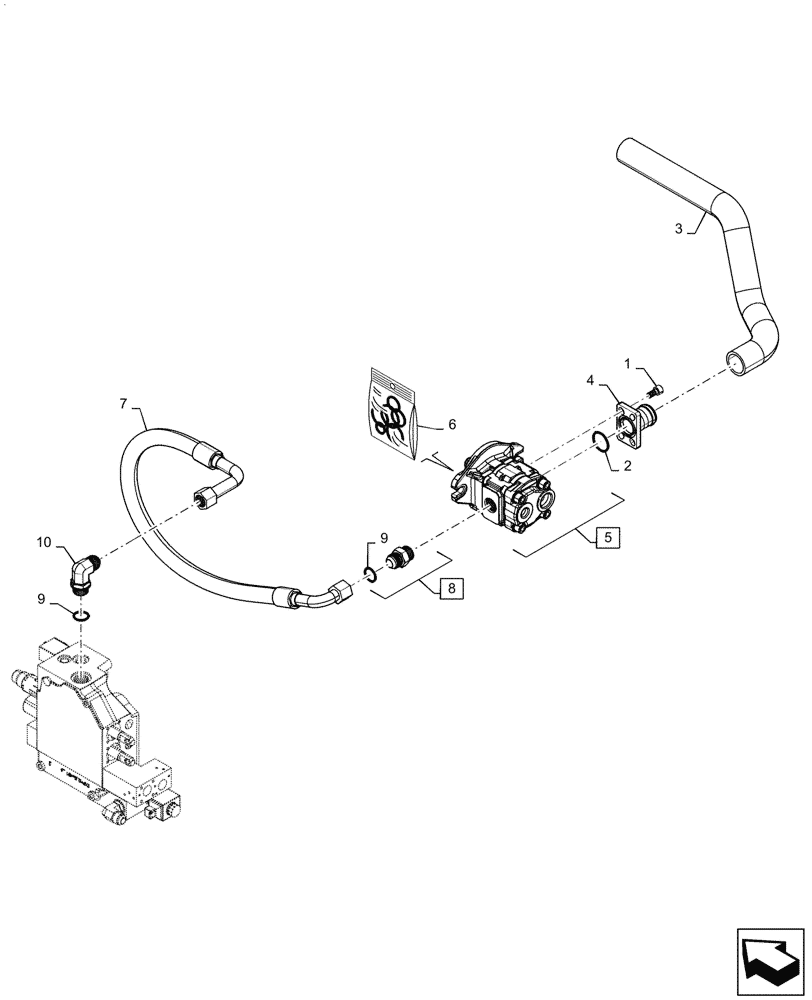

Схема запчастей Case TR270 - (35.220.AA[01]) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS
6
10
9
2
4
8
9
1
3
7
5

Артикул

Название

Примечание

Количество

1

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

2

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

3

84349296

HOSE,38.1mm ID

Gear Pump Suction, Years: -03-JUN-15

1шт.

3

47841484

HOSE

Gear Pump Suction, Start Year: 04-JUN-15

1шт.

4

84561027

FITTING

Gear Pump Suction

1шт.

5

84572269

PUMP,36.6 CC

Hyd. Gear, Incl 6

1шт.

6

84389261

SEAL KIT

1шт.

7

84291249

HOSE ASSY.,19mm ID X 970mm L x 1-1/16" - 12 x 1-1/16" - 12

1шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 9

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

10

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 9

1шт.

Выбрано товаров: 11
