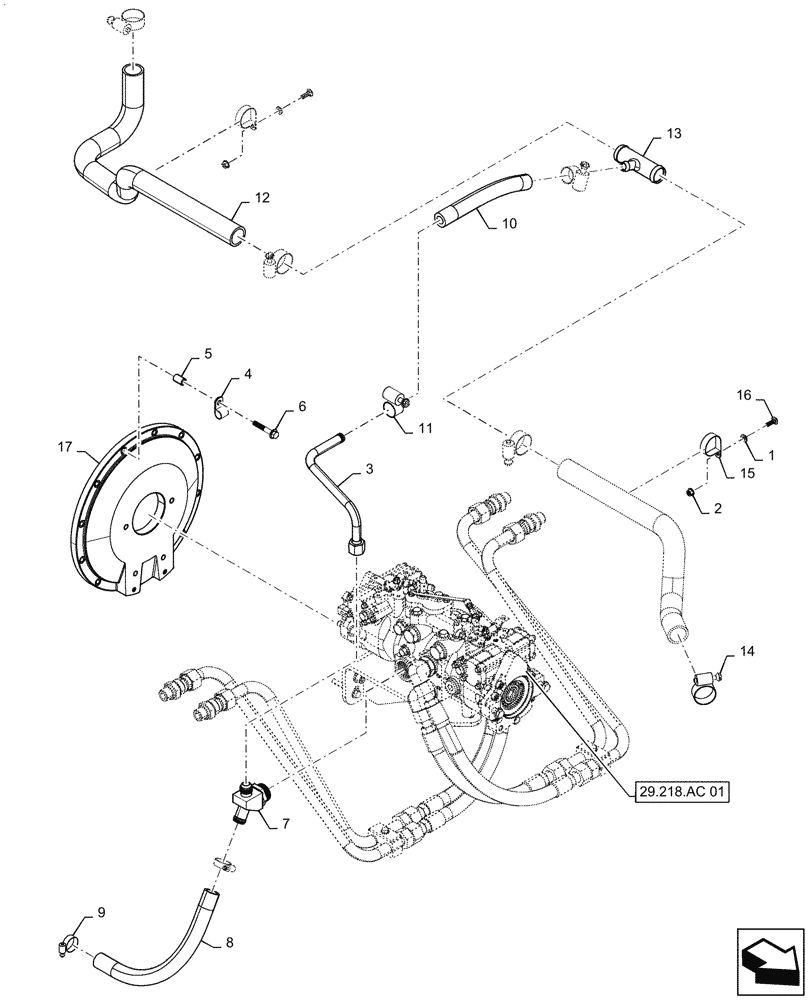

Запчасти Case TR270 (29.204.AB[02]) - HYDROSTATIC PUMP, SUPPLY LINES, MECHANICAL CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

1

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

2

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

3

84420270

HYD TUBE,19.05mm OD

Tandem Supply

1шт.

4

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

5

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

6

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

1шт.

7

84420269

FITTING,1-5/8" - 12 ORB x 1-1/16" - 12 JIC x -16 Hose Barb

1шт.

8

84280437

FLEXIBLE HOSE,25.4mm ID x 425mm L, SAE 100R4

Charge Supply

1шт.

9

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

10

84344942

HOSE,19.05mm OD x 280mm L

Tandem Supply

1шт.

11

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

12

47612618

HOSE,38.1mm ID

Assy, Gear Pump Suction

1шт.

13

47788716

TEE,3/4" Hose Barb x 1-1/2" Hose Barb x 1-1/2" Hose Barb

1шт.

14

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

15

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

17

47659227

COVER

Flywheel

1шт.
