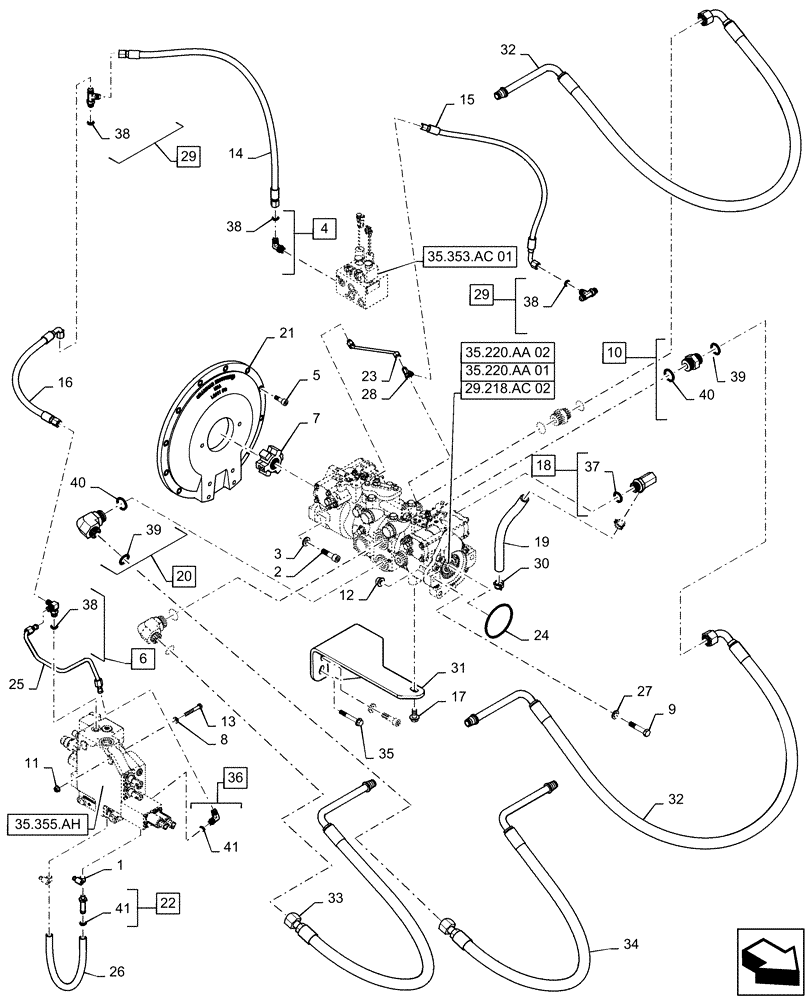

Запчасти Case TR270 (29.204.AB[01]) - HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS (19-NOV-2015 & PRIOR) (29) - HYDROSTATIC DRIVE

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

4шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 37

1шт.

5

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

6

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 37

1шт.

7

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8, 8.8mm x 17.5mm x 2.2mm, HTS, BORON, ZND

3шт.

9

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

10

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 39 - 40

2шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

12

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

13

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

14

84257174

HOSE ASSY.,9.53mm ID x 765mm L, SAE 100R17

Charge Pump To Brake Valve

1шт.

15

84257175

HOSE ASSY.,6.35mm ID x 650mm L, SAE 100R17

Brake Valve Return, Incl NSS O-rings

1шт.

16

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

Charge Pump To Loader Valve

1шт.

17

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

18

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Tee, Special, Incl 37

1шт.

19

84273645

HOSE,15.88mm ID x 327mm L

Hydrostatic Pump Drain, Years: -20-NOV-15

1шт.

19

47919061

HOSE,16mm ID x 535mm L

Hydrostatic Pump Drain, Start Year: 21-NOV-15

1шт.

20

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 39 - 40

2шт.

21

84305548

COVER

Cover

1шт.

22

87314487

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

Incl 41

1шт.

23

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

24

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

Gear Pump Mounting O-Ring

1шт.

25

84373389

RIGID TUBE,9.53mm OD

Loader Valve Auxiliary Charge

1шт.

26

84373394

HOSE,12.7mm ID x 410mm L

Loader Valve Auxiliary To Auxiliary Drain

1шт.

27

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

28

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

29

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 38

2шт.

30

84549542

CLAMP,20.5mm - 24mm, Hose

Hose

2шт.

31

84560744

MOUNT

Pump Support

1шт.

32

84560831

FLEXIBLE HOSE,19.05mm ID x 1445mm L, SAE 100R19

Supply, Hydrostatic Pump To RH Drive Motor

2шт.

33

84560841

HOSE ASSY.,19.05mm ID x 1240mm L, SAE 100R19

Supply, Hydrostatic Pump To LH Drive Motor

1шт.

34

84560843

HOSE ASSY.,19.05mm ID x 1140mm L, SAE 100R19

Supply, Hydrostatic Pump To LH Drive Motor

1шт.

35

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

36

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 41

1шт.

37

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 4, 6, 18

2шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 29

4шт.

39

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl in 10, 20

4шт.

40

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Incl in 10, 20

4шт.

41

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 36

2шт.
