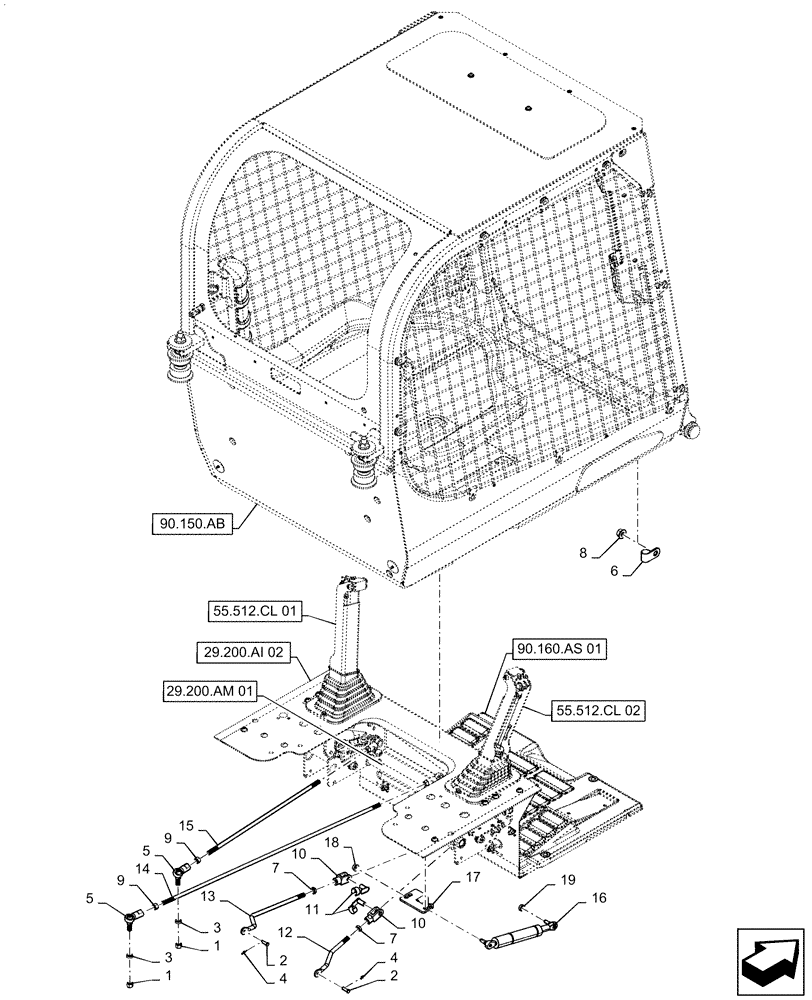

Запчасти Case TR270 (29.200.AI[01]) - HAND CONTROLS MOUNTING ASSEMBLY (29) - HYDROSTATIC DRIVE

1

80855

NUT,Hex, 3/8" - 24

2шт.

2

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

4

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

5

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

Threaded Stud W/ Rod

2шт.

6

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

7

84221258

THIN NUT,M10 x 1.5, Cl 5

2шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

9

86509310

NUT,3/8" - 24, Gr 5

2шт.

10

84299261

CLEVIS,10mm ID x 20mm L

2шт.

11

84299262

CLEVIS PIN,10mm OD x 20mm L

2шт.

12

84300037

ROD,10mm OD x 143.2mm L

Loader Valve Bracket

1шт.

13

84300039

ROD,10mm OD x 283.7mm L

Loader Valve Boom

1шт.

14

84300954

THREADED ROD

741mm L, Ground Drive

1шт.

15

84300956

THREADED ROD

453mm L, Ground Drive

1шт.

16

84310789

DAMPER,15mm Rod, 61mm Stroke

Control, Centering

2шт.

17

84338477

BRACKET

Shock Mount

2шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.
