Запчасти Case TR270 (90.160.AS[02]) - FLOOR PLATE, FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

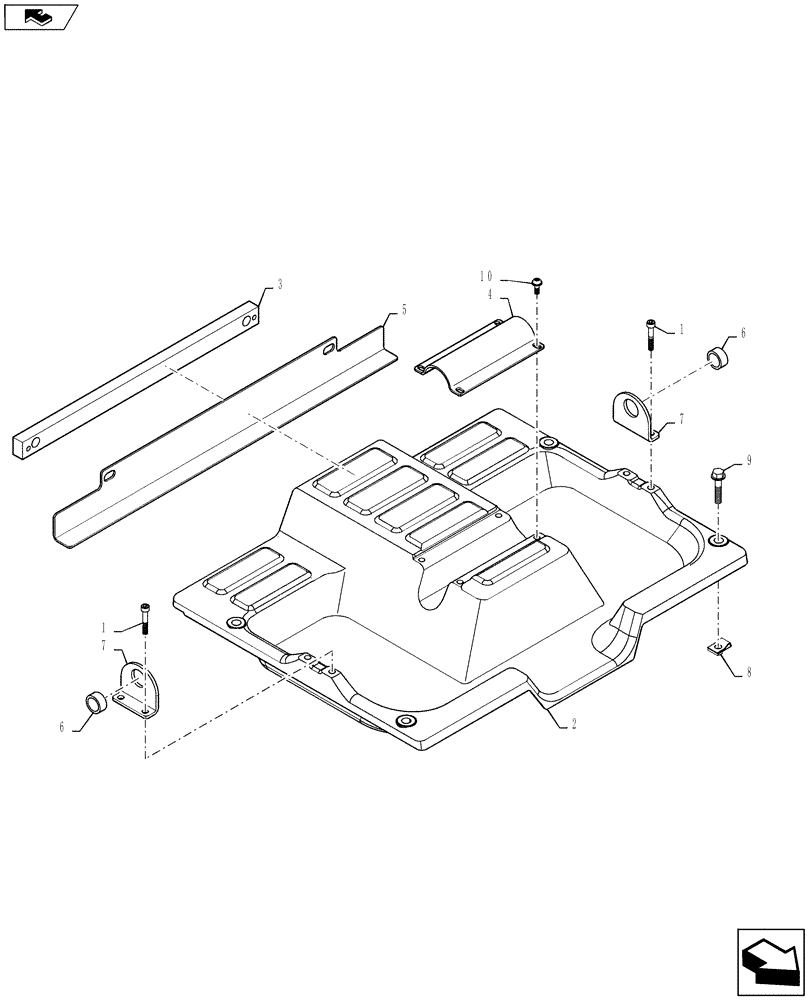

Схема запчастей Case TR270 - (90.160.AS[02]) - FLOOR PLATE, FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
7
6
4
home
7
9
8
10
1
3
1
6
2

Артикул

Название

Примечание

Количество

1

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

2

84201059

PLATE

Floor, Pedals

1шт.

3

84373110

FOAM

Lower Heel Plate

1шт.

4

84373687

PLATE

Control Pedal Cover

1шт.

5

84377351

ANGLE

Heel Plate

1шт.

6

84553555

BUSHING,19.25mm ID x 25.63mm OD x 8mm L

Foot Control Pivot

2шт.

7

84555971

BRACKET

Foot Control

2шт.

8

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

9

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

10

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

Выбрано товаров: 10
