Запчасти Case TR270 (10.400.BF) - FAN SHROUD (10) - ENGINE

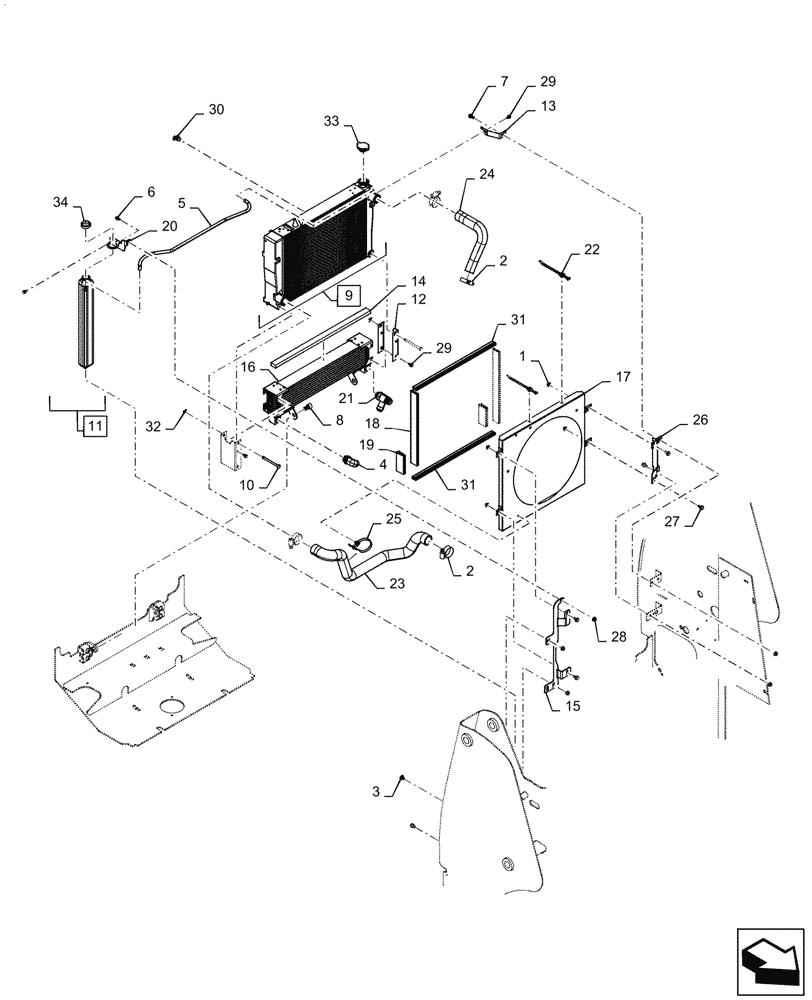

Схема запчастей Case TR270 - (10.400.BF) - FAN SHROUD (10) - ENGINE
31
27
10
26
21
15
17
7
29
16
6
31
32
2
4
13
28
34
1
25
20
24
30
11
29
3
14
18
8
5
9
23
2
33
22
12
19

Артикул

Название

Примечание

Количество

1

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

3

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

1шт.

4

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

5

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

8

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.

9

47946380

KIT

Radiator, Standard Fin Density, Incl 33

1шт.

9

47947705

KIT

Radiator, Low Fin Density, Incl 33

1шт.

10

47375204

PIN,9.65mm OD x 120.45mm L

2шт.

11

47490003

BOTTLE

Coolant Recovery, Incl 34

1шт.

12

47511179

CHANNEL

Cooler Mounting, Gray

2шт.

13

47516027

BRACKET

Radiator Mounting

1шт.

14

47535111

INSULATION

Coolers, 35mm x 18mm

1шт.

15

47681404

BRACKET

RH, Fan Shroud Mounting

1шт.

16

47740534

OIL COOLER

Standard Fin Density

1шт.

16

47778419

OIL COOLER

Low Fin Density

1шт.

17

47803800

SHROUD

480mm Fan

1шт.

18

47756641

RUBBER SEAL

Cut to Length, 460mm L

2шт.

19

47839170

HOSE, BULK

Cut to Length, 116mm L

2шт.

20

47938192

BRACKET

Coolant Bottle, Upper

1шт.

21

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

22

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

23

84277826

HOSE

Lower Coolant

1шт.

24

84332751

RADIATOR HOSE

Upper Coolant

1шт.

25

84551467

CABLE TIE,381mm L

1шт.

26

84552138

BRACKET

LH, Fan Shroud Mounting

1шт.

27

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

28

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

29

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

10шт.

30

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

31

87578980

RUBBER SEAL,590mm L

2шт.

32

87700737

CLIP

Pin

2шт.

33

87406949

FILLER CAP

Radiator, 16 PSI

1шт.

34

R50468

CAP

Coolant Recovery Bottle

1шт.

Выбрано товаров: 36
