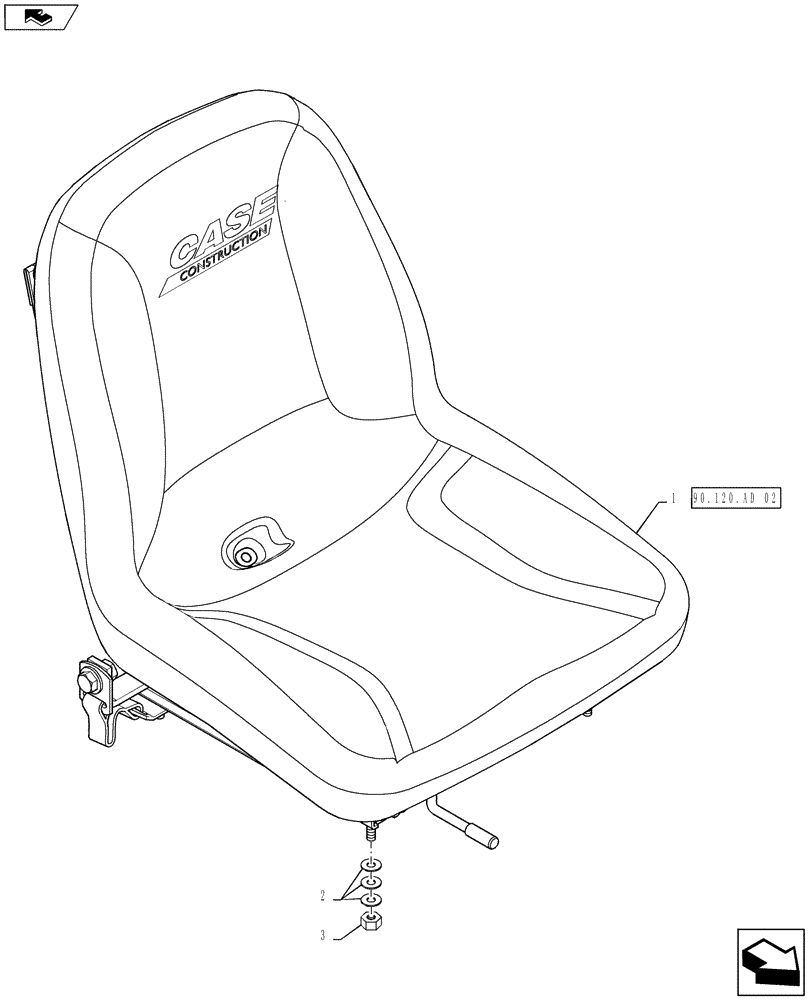

Запчасти Case TR270 (90.120.AD[01]) - SEAT, NON-SUSPENSION, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84540519

SEAT

Operator, Non Suspension, Complete

1шт.

See Figure 90.120.AD(02) For Service Parts

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65mm x 23.0mm x 2.2mm, HTS, BORON, ZND

11шт.

3

86629544

NUT,5/16” – 18, GR B

4шт.
