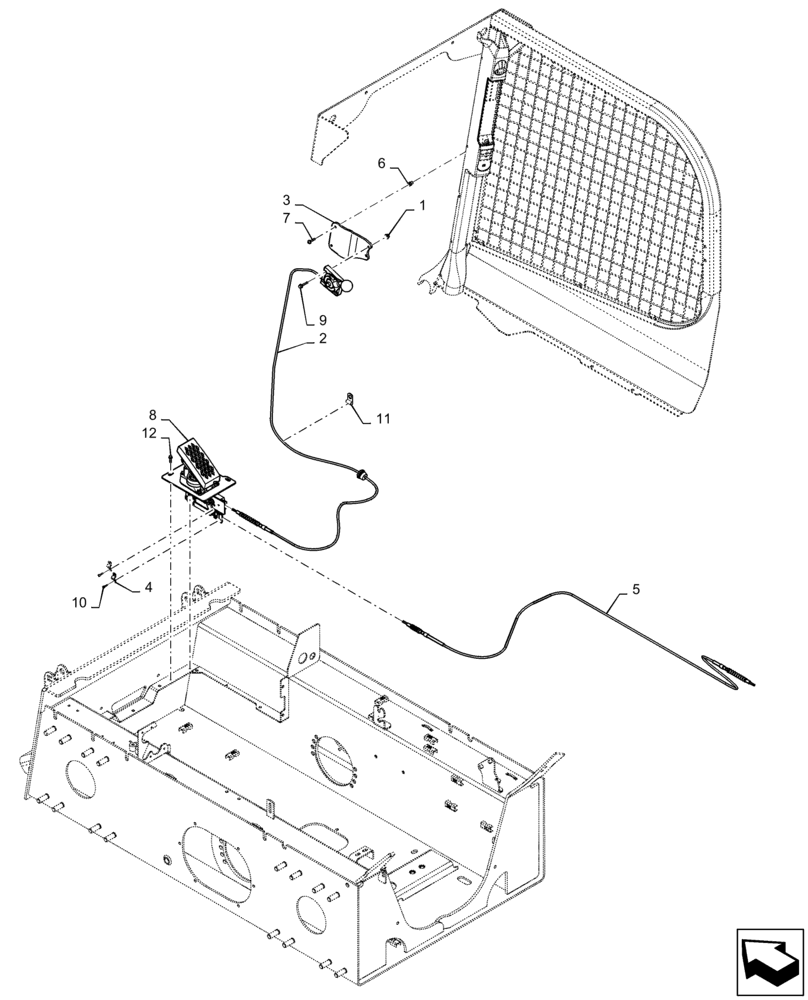

Запчасти Case TR270 (10.220.AA[05]) - HAND AND FOOT THROTTLE, E-H (10) - ENGINE

1

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

2

84258153

HANDLE GRIP

Throttle To Pedal, Years: -21-MAR-13

1шт.

2

47409019

HANDLE

Throttle To Pedal, Start Year: 22-MAR-13

1шт.

3

84333202

MOUNT

Hand Throttle, Years: -21-MAR-13

1шт.

3

47536465

MOUNT

Hand Throttle, Start Year: 22-MAR-13

1шт.

4

84200938

CLAMP

Throttle Cable

2шт.

5

84258154

CABLE,2280mm L

Pedal To Governor

1шт.

6

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

2шт.

7

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

8

84374768

THROTTLE

1шт.

9

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

10

86624126

HEX SOC SCREW,M4 x 16mm, Cl 8.8

4шт.

11

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

12

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

3шт.
