Запчасти Case TR270 (10.220.AA[04]) - HAND AND FOOT THROTTLE, MECHANICAL (10) - ENGINE

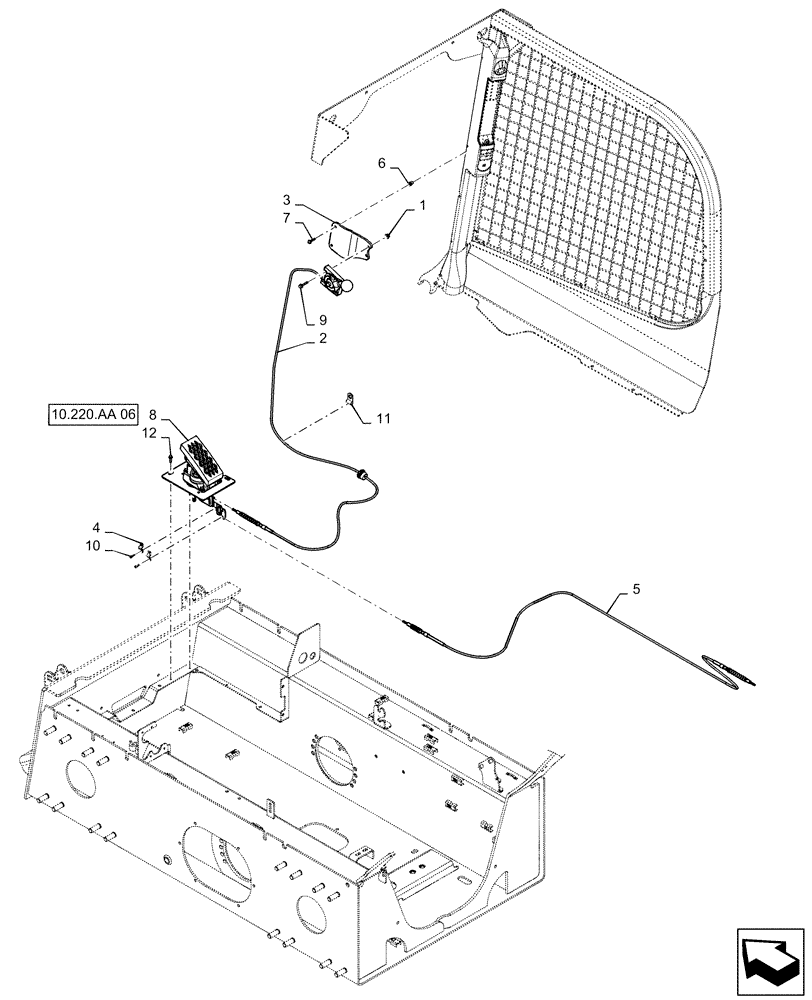

Схема запчастей Case TR270 - (10.220.AA[04]) - HAND AND FOOT THROTTLE, MECHANICAL (10) - ENGINE
4
10
10.220.aa 06
5
11
3
1
7
8
6
9
2
12

Артикул

Название

Примечание

Количество

1

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

2

47409019

HANDLE

Throttle To Pedal

1шт.

3

47536465

MOUNT

Hand Throttle

1шт.

4

84200938

CLAMP

Throttle Cable

2шт.

5

84258154

CABLE,2280mm L

Pedal To Governor

1шт.

6

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

2шт.

7

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

8

84374767

THROTTLE CONTROL

Mechanical

1шт.

9

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

10

86624126

HEX SOC SCREW,M4 x 16mm, Cl 8.8

4шт.

11

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

12

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

3шт.

Выбрано товаров: 12
