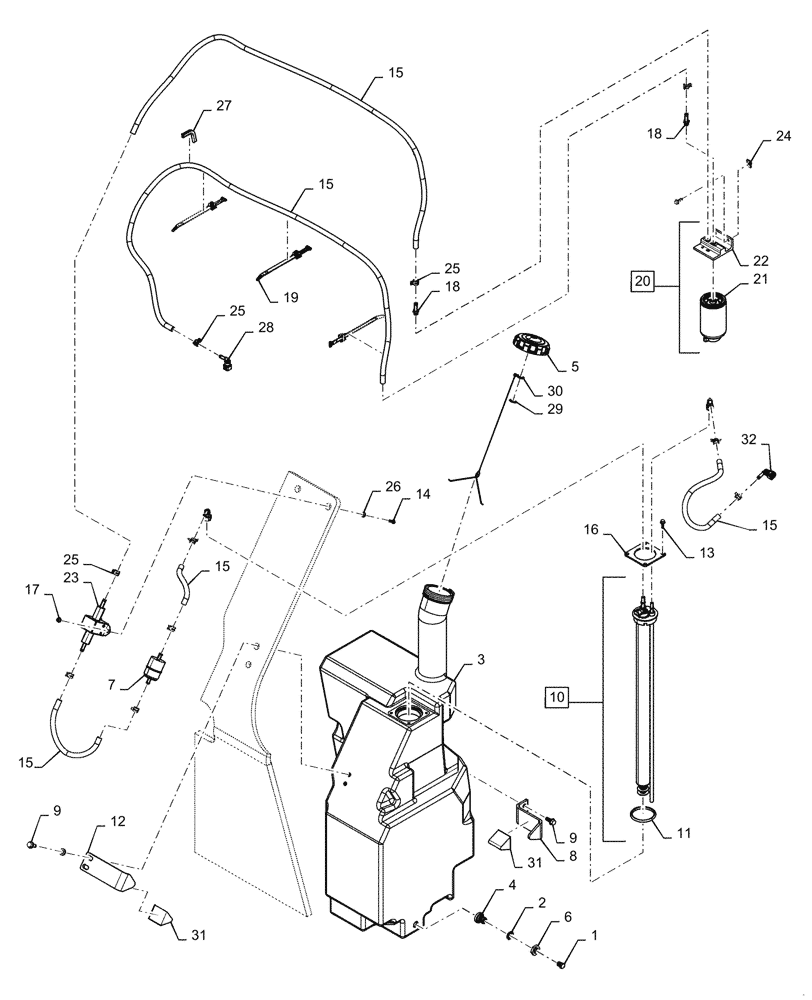

Запчасти Case TR270 (10.210.AF) - FUEL LINE & TANK (10) - ENGINE

1

9576801

PLUG,1/4" - 18 NPT

1шт.

2

9706714

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

3

84512885

FUEL TANK

Bare Tank

1шт.

4

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Fitting Fuel Tank Drain

1шт.

5

48088756

Fuel, With Check Valve

FILLER CAP

1шт.

6

1251791C1

JAM NUT,3/4" - 16 LH Thread

Fuel Tank Drain Fitting

1шт.

7

87548612

FUEL FILTER

In-Line

1шт.

8

47710480

BRACKET

Tank

1шт.

9

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

4шт.

10

84268571

SENDER UNIT

Fuel Incl 11

1шт.

11

84485157

SEAL

Fuel Sender

1шт.

12

84273624

BRACKET

Fuel Tank

1шт.

13

84338049

MOUNTING PLATE

Sender Retaining

1шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

15

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

14.3'

1шт.

16

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

6шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

18

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

2шт.

19

84259663

CABLE TIE,228.6mm L, Nylon, Black

4шт.

20

84525901

FUEL FILTER

Assy Incl 21, 22

1шт.

21

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

Fuel

1шт.

22

87042231

FILTER HEAD

Fuel

1шт.

23

47420302

FUEL PUMP,12V, 3A

Electric Lift

1шт.

24

86625073

SPRING NUT,M6 x 1

2шт.

25

87436932

CLAMP,13.9mm - 15.5mm, Spring

10шт.

26

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

27

87702286

TRIM,Bulk, 1/8" x 30480mm L

85.3mm

1шт.

28

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

2шт.

29

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

Fuel Cap

1шт.

30

84370069

CHAIN

Fuel Cap

1шт.

31

84602030

PAD

Triangle

2шт.

32

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

2шт.
