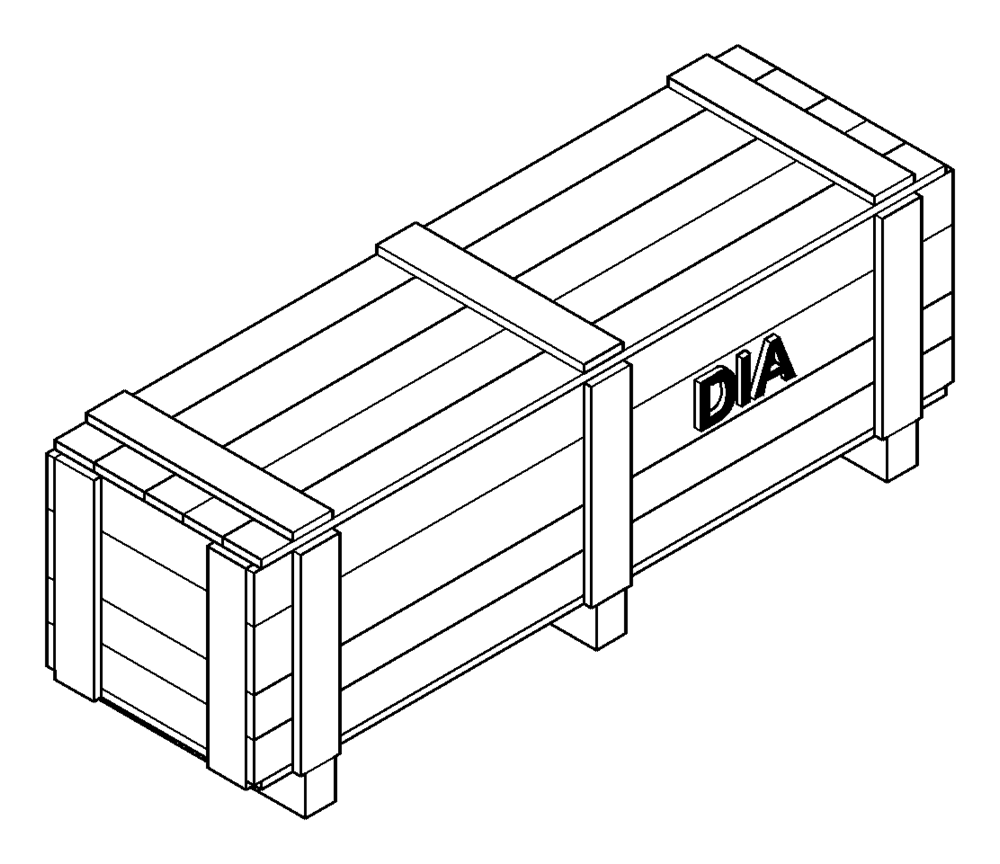

Запчасти Case TR270 (88.100.10[02]) - DIA KIT, ASPIRATOR RADIAL (88) - ACCESSORIES

84396763

KIT

DIA Kit, Aspirator, Incl. 1-14

1шт.

1

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

2

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

4

84137995

HOSE CLAMP,SAE #36 OD

Turn Key Grip

1шт.

5

84314770

HOSE

Tail, Serial Range: Pipe-Aspirator

1шт.

6

84314771

HOSE

Air, Serial Range: Cleaner-Aspirator

1шт.

7

84359085

RIGID TUBE

Exhaust Tail Pipe

1шт.

8

84396234

BRACKET

Aspirator Mounting

1шт.

9

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

10

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

1шт.

11

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

1шт.

12

406089A2

VALVE

Aspirator Check

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

Cable Tie

1шт.

14

84396771

INSTRUCTION

Sheet, Aspirator

1шт.
