Запчасти Case TR270 (10.001.AK) - ENGINE MOUNT (10) - ENGINE

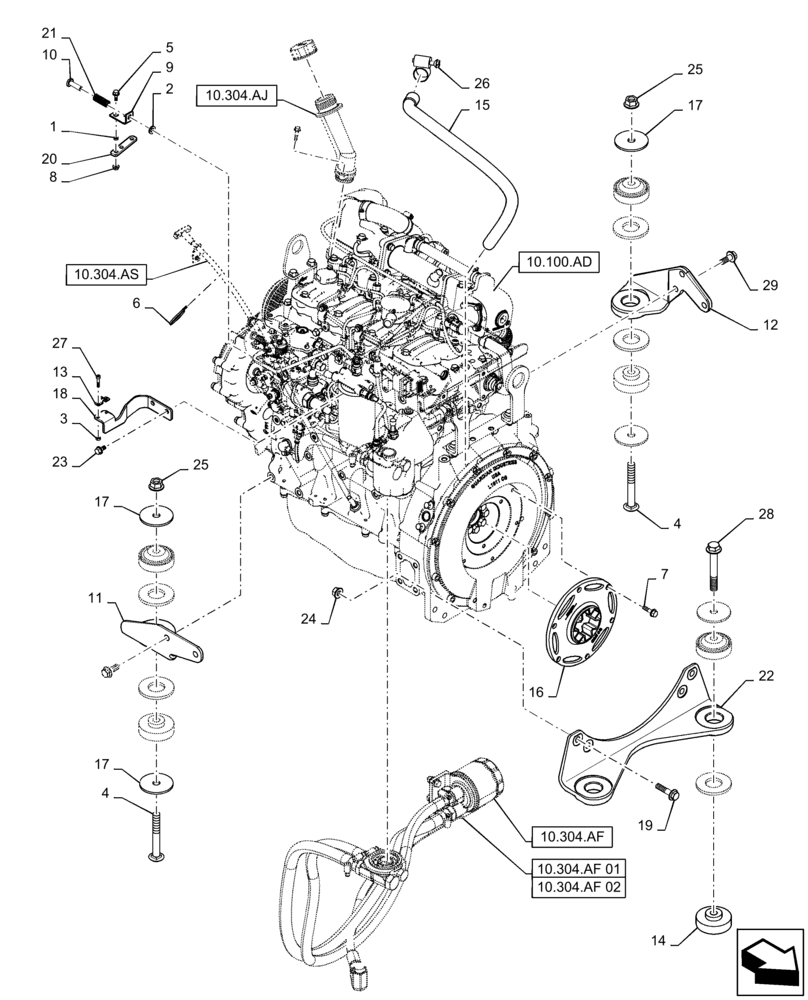

Схема запчастей Case TR270 - (10.001.AK) - ENGINE MOUNT (10) - ENGINE
20
27
24
17
28
14
3
12
8
29
2
9
25
16
10
10.304.af 02
1
4
10.304.as
23
13
15
10.304.aj
19
22
25
4
5
7
10.304.af 01
21
26
6
18
17
17
10.100.ad
10.304.af
11

Артикул

Название

Примечание

Количество

1

13734

SPACER,6.52mm ID x 9.52mm OD x 3.43mm W

Bushing, 0.257" ID

1шт.

2

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

1шт.

3

100012

NUT,M4 x 0.7, Cl 8

2шт.

4

300663

CARRIAGE BOLT,M16 x 2.0 x 120mm, Cl 8.8

2шт.

5

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

6шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

9

9844532

BRACKET

Throttle

1шт.

10

9860169

RIVET,10-32 Thread, 19.6mm Shoulder

Drilled

1шт.

11

47600713

MOUNT

RH

1шт.

12

47600714

MOUNT

LH

1шт.

13

84200938

CLAMP

Throttle Cable

1шт.

14

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Mount

8шт.

15

84204223

INTAKE AIR HOSE

CCV

1шт.

16

87692685

FLEXIBLE COUPLING,215.9mm OD

Flexible

1шт.

17

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

6шт.

18

84259542

BRACKET

Throttle Cable

1шт.

19

87670764

BOLT,M12 x 61.8mm, Cl 10.9

4шт.

20

84276430

BRACKET

Throttle

1шт.

21

84380082

SPRING

Throttle

1шт.

22

84530877

MOUNT

Pump

1шт.

23

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

24

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

25

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

26

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

27

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

2шт.

28

87015923

BOLT,M16 x 125.4mm, Cl 10.9

2шт.

29

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

5шт.

Выбрано товаров: 29
