Запчасти Case TR270 (55.302.AV) - BATTERY & CABLE (55) - ELECTRICAL SYSTEMS

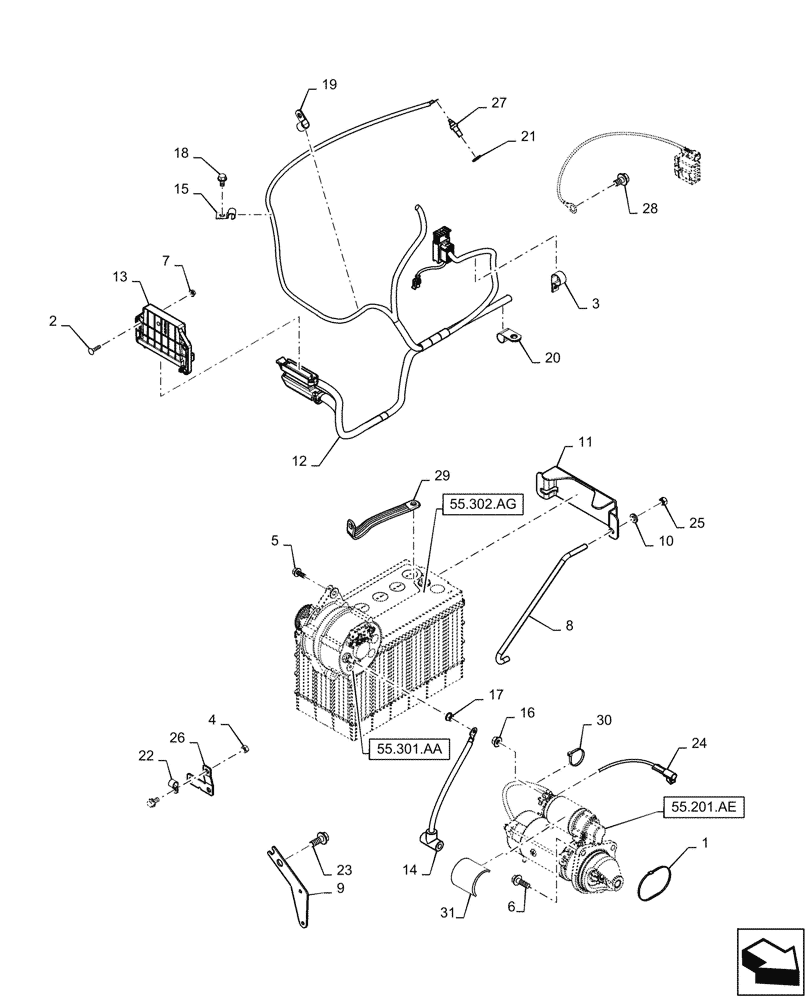

Схема запчастей Case TR270 - (55.302.AV) - BATTERY & CABLE (55) - ELECTRICAL SYSTEMS
55.301.aa
24
6
23
11
12
8
30
7
31
2
28
10
4
1
17
18
5
29
14
9
13
19
26
20
22
25
27
21
3
15
55.201.ae
16
55.302.ag

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

2

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

3шт.

3

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

1шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

8

47505880

HOOK

Battery Tie Down

2шт.

9

47529572

BRACKET

Battery Cable

1шт.

10

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

11

84420303

STRAP

Battery Mount

1шт.

12

84375316

WIRE HARNESS

Engine

1шт.

13

84420643

CONTROLLER

F5C, EGR

1шт.

14

84605008

POS BATTERY CABLE

4 Ended, Years: -30-NOV-14

1шт.

14

47800584

POS BATTERY CABLE

4 Ended, Start Year: 01-DEC-14

1шт.

15

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

17

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

18

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

19

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

20

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

21

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

23

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

24

87053083

HARNESS

Starter Jumper

1шт.

25

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

26

87591549

BRACKET

Grid Heater

1шт.

27

87688409

TEMPERATURE SENDER,M10 x 1.0

Water

1шт.

28

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

29

D140369

GROUND STRAP,260mm L

Ground Strap

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

31

48094098

Starter

INSULATION

1шт.

Выбрано товаров: 32
