Запчасти Case TR270 (55.101.AC[03]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

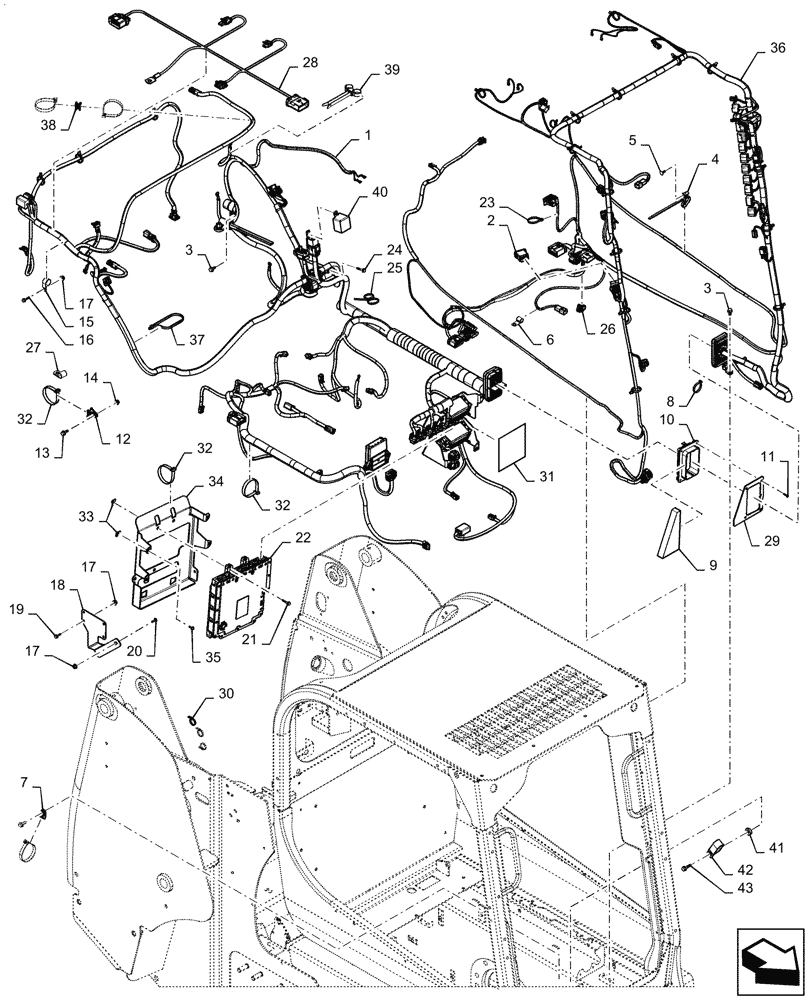

Схема запчастей Case TR270 - (55.101.AC[03]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS
30
19
32
3
35
5
10
40
18
24
43
17
6
36
25
7
37
17
41
22
11
17
29
8
3
9
20
28
27
2
42
23
32
15
4
31
21
26
16
1
39
14
12
32
13
38
34
33

Артикул

Название

Примечание

Количество

1

47961512

WIRE HARNESS

Chassis, EH

1шт.

2

84251343

SWITCH

Rocker, Drive Pattern

1шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

4

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

5

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

6

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

7

47689101

MOUNT

Wire Harness

1шт.

8

30007000

CABLE TIE,.350" x 20.9"

2шт.

9

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

1шт.

10

87718301

WIRE CONNECTOR,Flange

1шт.

11

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

12

84360210

BASE

Tie

1шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

18

47832750

BRACKET

GCU Fuse Mounting

1шт.

19

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

20

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

21

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.

22

84267444

ECU

SSL

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

24

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

1шт.

25

82012869

CABLE TIE,300mm L, Nylon, Black

9шт.

26

84259663

CABLE TIE,228.6mm L, Nylon, Black

1шт.

27

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

28

47954073

WIRE HARNESS

RH Tower

1шт.

29

47867182

Bulkhead Adapter, Gray

PLATE

1шт.

30

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

31

47946330

DECAL

Fuse Box Layout, EH/EHF

1шт.

32

84360212

CABLE TIE,294.2mm L, Nylon

33шт.

33

86625073

SPRING NUT,M6 x 1

10шт.

34

47860657

BRACKET

UCM Support, Gray

1шт.

35

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

36

47920677

WIRE HARNESS

Cab, EH

1шт.

37

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

38

84318895

SPACER,17.97mm H

2шт.

39

84386243

CLAMP,489mm L

1шт.

40

47932510

BRACKET

Relay Shield, Gray

1шт.

41

47464479

SPACER,10.5mm ID x 25.4mm OD x 8mm L

1шт.

42

47048664

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

43

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

Выбрано товаров: 43
