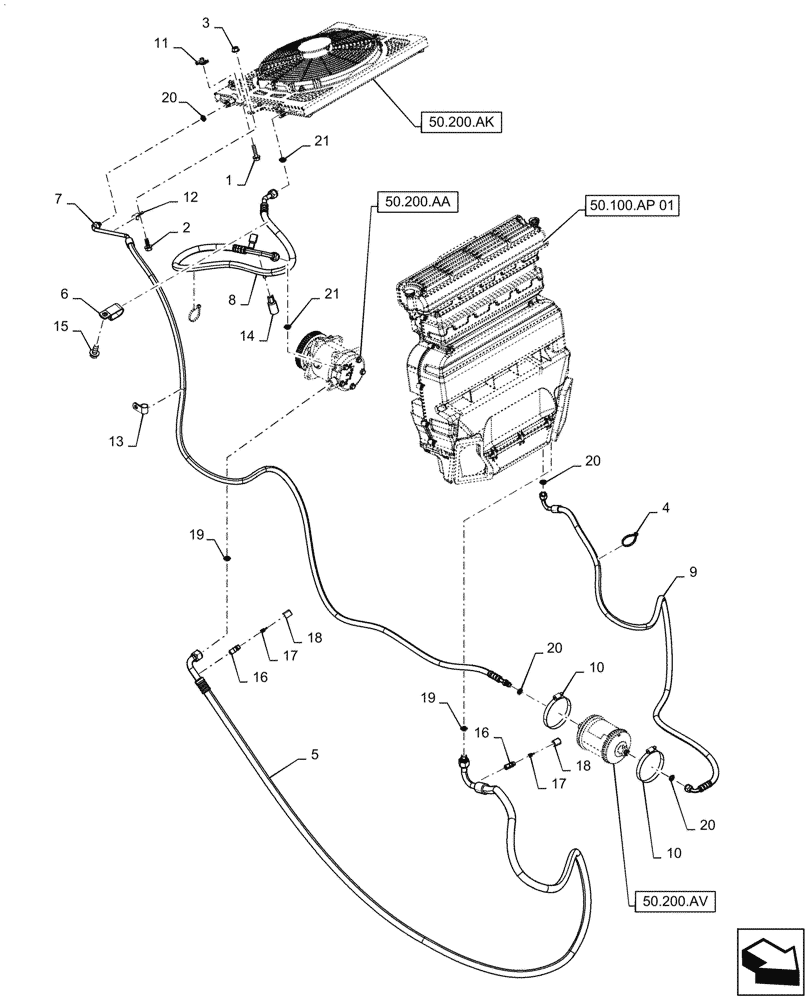

Запчасти Case TR270 (50.200.BY) - AIR CONDITIONER, PLUMBING - 04-JUN-2015 AND AFTER (50) - CAB CLIMATE CONTROL

1

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

5

47534057

A/C HOSE

Suction, Incl 19, Years: -30-JUN-16

1шт.

5

48021887

A/C HOSE

Suction, Incl 19, Start Year: 31-AUG-16

1шт.

6

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

7

47836024

A/C HOSE

Liquid, Incl 20, Years: -30-JUN-16

1шт.

7

47940029

A/C HOSE

Liquid, Incl 20, Start Year: 31-AUG-16

1шт.

8

47836026

A/C HOSE

Discharge, Incl 21, Years: -30-JUN-16

1шт.

8

47940032

A/C HOSE

Discharge, Incl 21, Start Year: 31-AUG-16

1шт.

9

84403037

HOSE ASSY.

Liquid, Incl 20 , Years: -30-JUN-16

1шт.

9

47939973

A/C HOSE

Liquid, Incl 20 , Start Year: 31-AUG-16

1шт.

10

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

11

86625073

SPRING NUT,M6 x 1

4шт.

12

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

13

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

14

87000227

SWITCH, A/C HIGH PRE

1шт.

15

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

1шт.

16

414079A1

VALVE

Fitting, Low Side Service Port

2шт.

17

414083A1

VALVE

Low Side Service Port

2шт.

18

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

Low Side Service Port

2шт.

19

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

20

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

4шт.

21

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.
