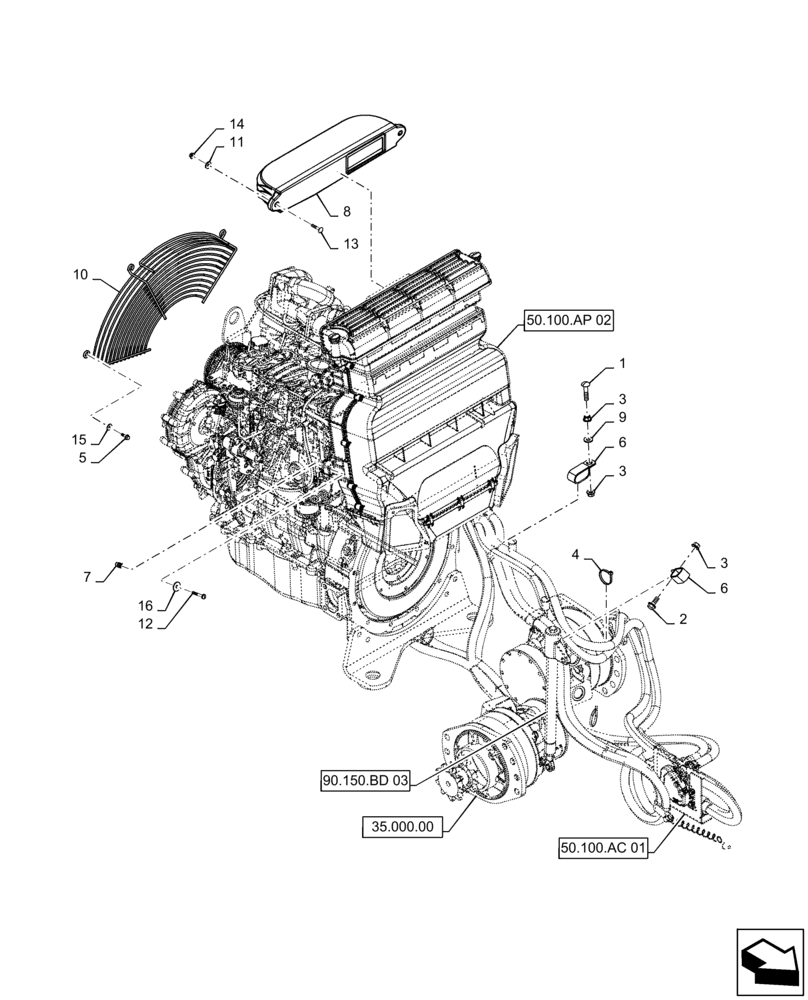

Запчасти Case TR270 (50.100.AC[02]) - HEATER MEDIUM FRAME (50) - CAB CLIMATE CONTROL

1

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

3

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

5

84137412

SCREW,Hex Flng, M6 x 18mm

3шт.

6

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

7

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

8

84280313

AIR DUCT

External

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

10

84335903

GUARD

Fan

1шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

12

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

13

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

15

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

16

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.
