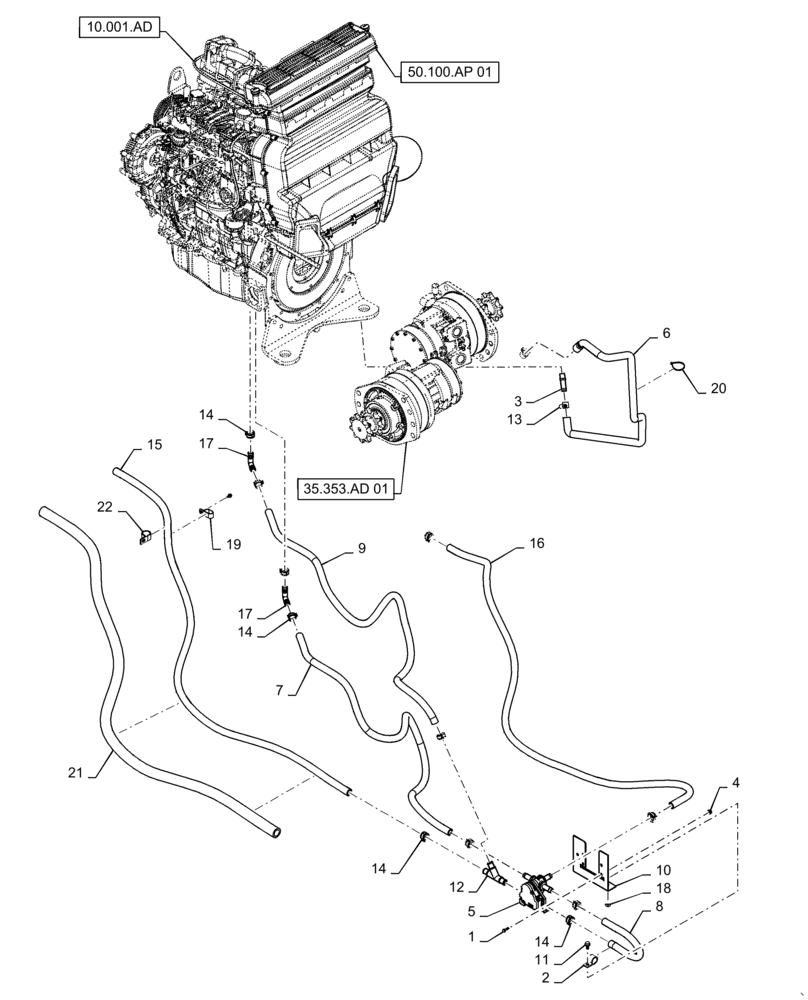

Запчасти Case TR270 (50.100.AC[01]) - HEATER PLUMBING (50) - CAB CLIMATE CONTROL

1

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

2

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

3

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

5

84245940

VALVE

Water Supply, 3-Way

1шт.

6

84333356

TUBE

Heater Loop

1шт.

7

84357678

HOSE,15.5mm ID x 1635mm L

Heater Supply

1шт.

8

84359205

HOSE,15.5mm ID x 370mm L

Heater Return

1шт.

9

84359308

HOSE,15.5mm ID x 1656mm L

Heater Return

1шт.

10

84559122

BRACKET

Water Valve and Dryer

1шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

12

86530043

FITTING,5/8” Y-Fitting

Y Hose

1шт.

13

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

14

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

12шт.

15

87567191

HEATER HOSE,5/8” Bulk Roll 500 FT, Supply

Heater Return, Cut From Bulk 1785mm

1шт.

16

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Heater Supply, Cut From Bulk1875mm

1шт.

17

127083A1

ELBOW,16mm OD x 17mm OD Bead

Heater Hose

2шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

19

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Heater Hose

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

21

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Hose

1шт.

22

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

1шт.
