Запчасти Case TR270 (55.101.AC[01]) - CHASSIS OPTIONS HARNESS, MECH MD (SR175-SR200,TR270) (55) - ELECTRICAL SYSTEMS

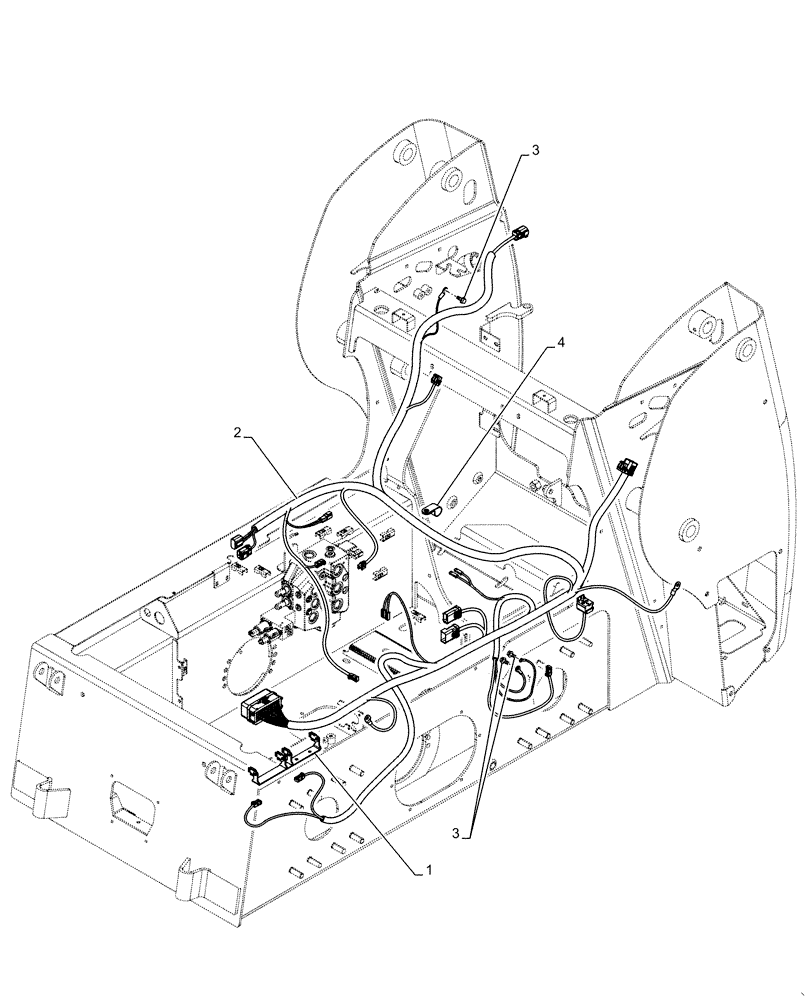

Схема запчастей Case TR270 - (55.101.AC[01]) - CHASSIS OPTIONS HARNESS, MECH MD (SR175-SR200,TR270) (55) - ELECTRICAL SYSTEMS
3
3
2
4
1

Артикул

Название

Примечание

Количество

1

84285504

BRACKET, SUPPORTING

Double Fuse Box

1шт.

2

84315528

WIRE HARNESS

Chassis Option

1шт.

For SR175, BSN NBM428253 For NA / BSN NBM428974 For EU

1шт.

For SV185, BSN NBM429355 For NA / BSN NBM441625 For EU

1шт.

For SR200, BSN NBM430750 For NA / BSN NBM431380 For EU

1шт.

For TR270, BSN NBM438800 For NA / BSN NBM439188 For EU, Years: 01-APR-11-01-DEC-11

1шт.

2

84423508

WIRE HARNESS

Chassis Option

1шт.

For SR175, From NBM428253 Until NCM428715 For NA / From NBM428974 Until NCM428995 For EU

1шт.

For SV185, From NBM429355 Until NCM443856 For NA / From NBM441625 Until NCM452158 For EU

1шт.

For SR200, From NBM430750 Until NCM453610 For NA / From NBM431380 Until NCM431400 For EU

1шт.

For TR270, From NBM438800 Until NCM458648 For NA / From NBM439188 Until NCM439203 For EU

1шт.

2

84605461

WIRE HARNESS

Chassis Option

1шт.

For SR175, SN NCM428716 And After For NA / SN NCM428996 And After For EU

1шт.

For SV185, SN NCM443857 And After For NA / SN NCM452159 And After For EU

1шт.

For SR200, SN NCM453611 And After For NA / SN NCM431401 And After For EU

1шт.

For TR270, SN NCM458649 And After For NA / SN NCM439204 And After For EU

1шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

4

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

Выбрано товаров: 18
