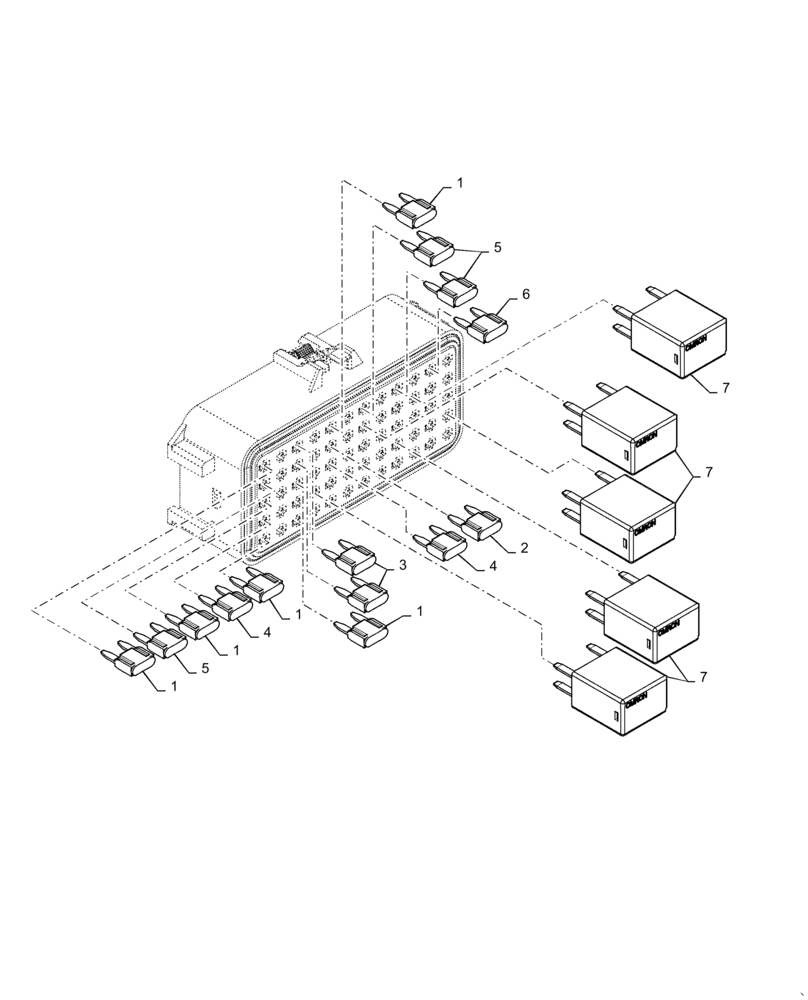

Запчасти Case TR270 (55.100.DO[01]) - FUSE BOX #1, EH & MECHANICAL (SR130, SR150, SR175, SR200, SV185, TR270) (55) - ELECTRICAL SYSTEMS

1

121413A1

FUSE,15A, Mini, Blue

Rear Work Lamps, Position: (E5, E6)

1шт.

*

Main Power Ignition, Position: (C3, C4)

1шт.

*

Wiper/Seat Accessory/Radio/Dome Lamp/ Defroster/ HVAC Relay/Self Level, Position: (C1, C2)

1шт.

*

Front Work Lamp, Position: (E1, E2)

1шт.

2

121414A1

FUSE,20A, Mini, Yellow

Accessory Socket/Beacon, Position: (D5, D6)

1шт.

3

121412A1

FUSE,10A, Mini, Red

Work/Side Lamp, Position: (E3, E4)

1шт.

*

Instrument Cluster, Position: (D3, D4)

1шт.

4

121415A1

FUSE,25A, Mini, Clear

A/C Compressor/Condensor Fan, Position: (C5, C6)

1шт.

*

Back Up Alarm, Position: (B1, B2)

1шт.

5

121410A1

FUSE,5A, Mini, Tan

Left Tail Lamp, Position: (E7, E8)

1шт.

*

Right Tail Lamp, Position: (E9, E10)

1шт.

*

Unswitched Battery, Position: (D1, D2)

1шт.

6

121416A1

FUSE,30A, Mini, Green

HVAC, Position: (A1, A2)

1шт.

*

Crank, Position: (E11, E12)

1шт.

7

87655334

RELAY,12V, 35A, Micro

Main Power, Position: (C7, C9)

1шт.

*

Crank, Position: (A4, A6)

1шт.

*

Lights #2/Rear & Side Lamp, Position: (A7, A9)

1шт.

*

Lights #1/ Front Work Lamps, Position: (A10, A12)

1шт.

*

Accessory, Position: (C10, C12)

1шт.

8

84255438

FUSE BOX

Connector

1шт.

8

84380518

FUSE BOX

(If Used) Used With Side Clip Cover p/n 84404932

1шт.

9

84255450

FUSE BOX

Cover

1шт.

9

84404932

COVER

Cover, Side Clips (If Used) Used With Fuse Box p/n 84380518

1шт.
