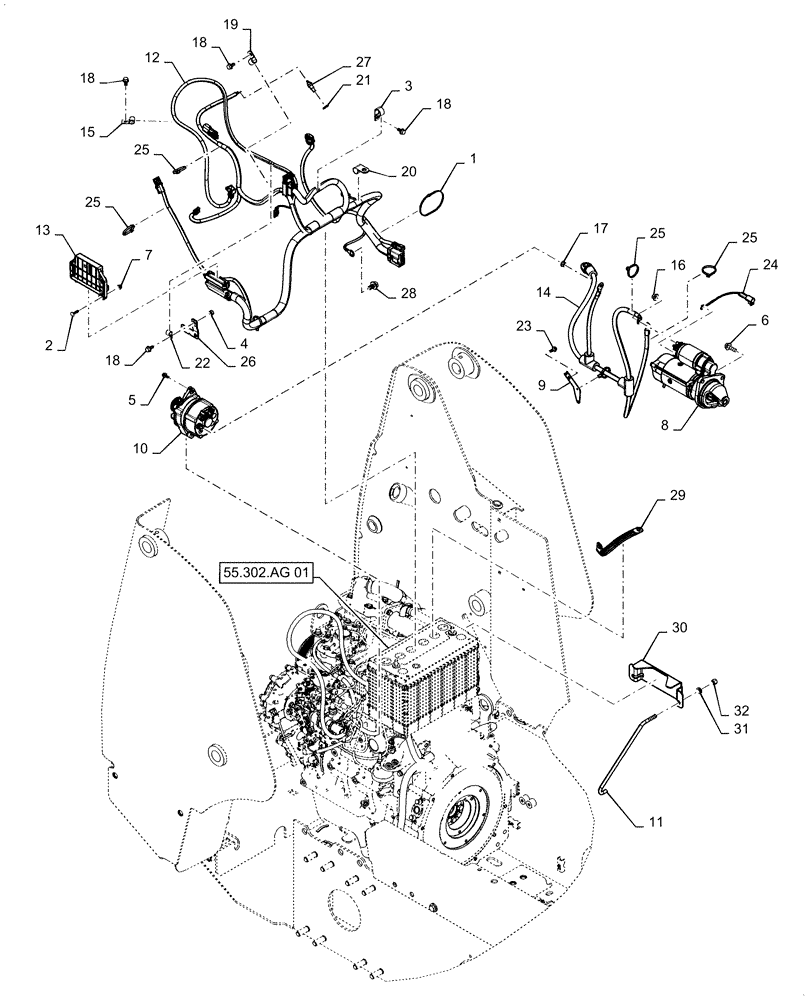

Запчасти Case TR270 (55.015.AB[01]) - ENGINE, ELECTRICAL (SR200,TR270) (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

2

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

3шт.

3

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

1шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

8

47375306

STARTER MOTOR,12V, 3.2kW

, Years: -27-FEB-15

1шт.

8

47375306R

REMAN-STARTER,12V, 3.2kW

1шт.

8

47375306C

CORE-STARTER,12V, 3.2kW

Return Number

1шт.

8

504357110

STARTER MOTOR,12V, 3.2kW

, Years: 28-FEB-15-20-JUL-15

1шт.

8

504357110R

REMAN-STARTER

12V, 3.2kW

1шт.

8

504357110C

CORE-STARTER,12V, 3.2kW

Return Number

1шт.

8

5801577138

, Start Year: 21-JUL-15

STARTER MOTOR,12V, 3.2kW

1шт.

8

5801577138R

REMAN-STARTER

Reman Starter

1шт.

8

5801577138C

CORE-STARTER

Return Number

1шт.

9

47529572

BRACKET

Battery Cable

1шт.

10

84254290

ALTERNATOR,12V, 120A, W/ Pulley

1шт.

10

84254290R

REMAN-ALTERNATOR

1шт.

10

84254290C

CORE-ALTERNATOR

Return Number

1шт.

11

47505880

HOOK

Battery Tie Down

1шт.

12

84375316

WIRE HARNESS

Engine, F5C

1шт.

13

84420643

CONTROLLER

EGR F5C

1шт.

14

84298939

POS BATTERY CABLE

580mm L, 930mm L, Years: -25-NOV-12

1шт.

14

84605008

POS BATTERY CABLE

581mm L, 930mm L, Years: 26-NOV-12-30-NOV-14

1шт.

14

47800584

POS BATTERY CABLE

604mm L, 909mm L, Start Year: 01-DEC-14

1шт.

15

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

, Years: -30-MAR-13

1шт.

17

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

, Start Year: 01-MAY-13

1шт.

18

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

19

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

20

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

21

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

23

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

24

87053083

HARNESS

Starter, Jumper

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

26

87591549

BRACKET

Grid Heater

1шт.

27

87688409

TEMPERATURE SENDER,M10 x 1.0

Water

1шт.

28

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

29

D140369

GROUND STRAP,260mm L

Ground Strap

1шт.

30

84420303

STRAP

Battery Mount

1шт.

31

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

32

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.
