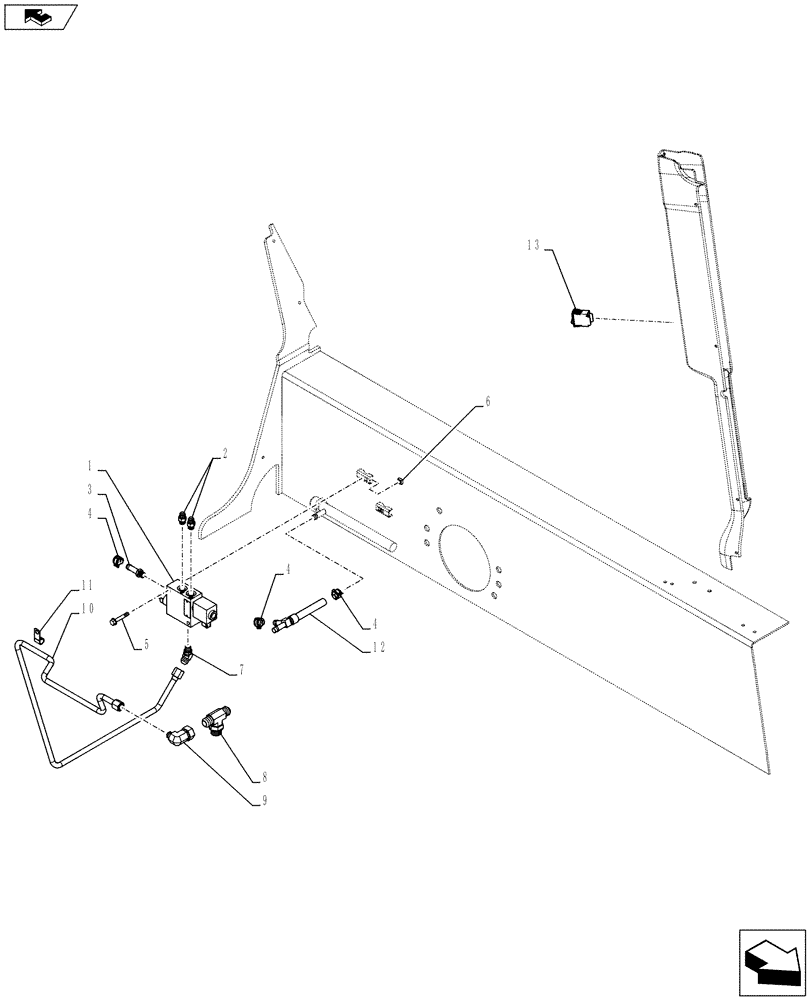

Запчасти Case TR270 (35.734.AH[03]) - HYDRAULIC COUPLER, CHASSIS PLUMBING (SR175-TV380) (35) - HYDRAULIC SYSTEMS

1

84256406

HYDRAULIC VALVE

Coupler

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

3

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

4

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

3шт.

5

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

6

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

2шт.

7

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

1шт.

8

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Hydraulic Tee

1шт.

9

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

, Years: -20-DEC-12

1шт.

Not Used After End Date Specified, Replaced By 47539004

1шт.

10

84291016

RIGID TUBE

, Years: -20-DEC-12

1шт.

Not Used After End Date Specified, Replaced By 47539004

1шт.

10

47539004

TUBE

Assembly, Hydraulic Coupler, Start Year: 21-DEC-12

1шт.

11

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

12

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

Assembly, Option

1шт.

13

84251346

SWITCH

Rocker, Hydraulic Coupler

1шт.
