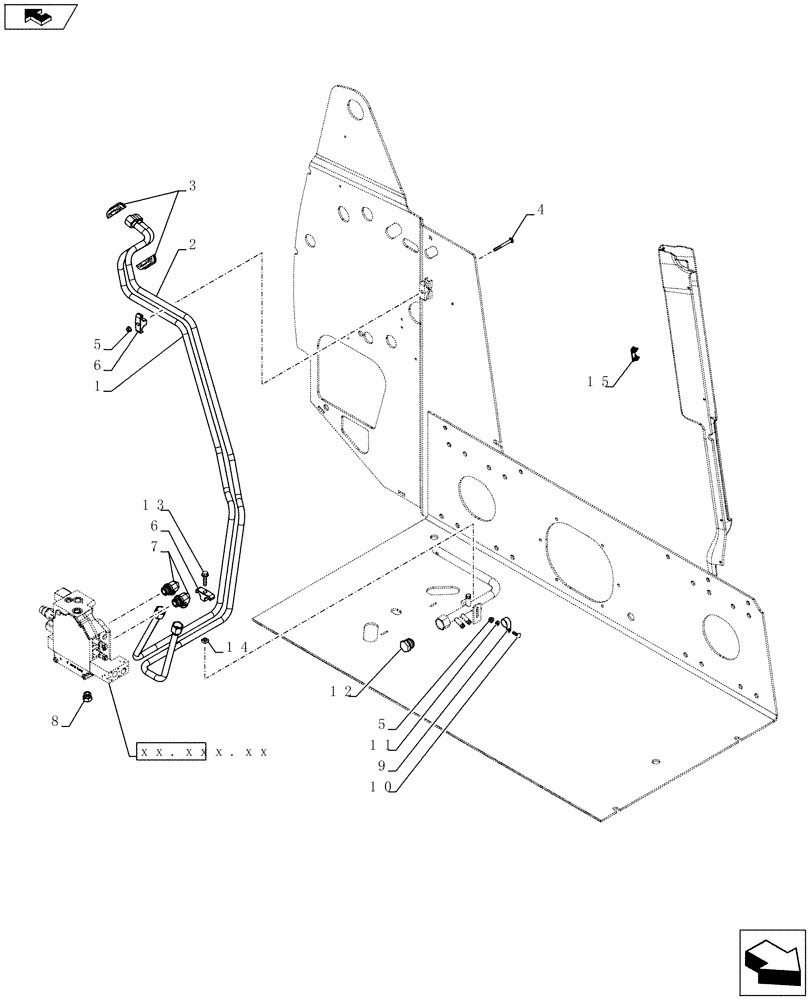

Запчасти Case TR270 (35.734.AH[03]) - AUX HYD, STD, CHASSIS PLUMBING (SR175)(SR200)(TR270) (35) - HYDRAULIC SYSTEMS

1

84186144

TUBE

Assembly, Aux, LDR Valve to Lft Arm

1шт.

2

84186142

TUBE

Assembly, Aux, LDR Valve to Lft Arm

1шт.

3

84362112

SUPPORT

Hyd Tube

2шт.

4

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

SSQ M8 X 80

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

D124301

CLAMP,3/4" ID

2шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

8

86512512

PLUG,7/8" - 14 ORB

1шт.

9

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8, 8.80 X 17.5 X 2.2 HTS

1шт.

12

9790527

PLUG,1-5/16" - 12 JIC

1шт.

13

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

14

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

15

126844A1

PLUG,1.427” x .62” , Plastic

Cover

1шт.
